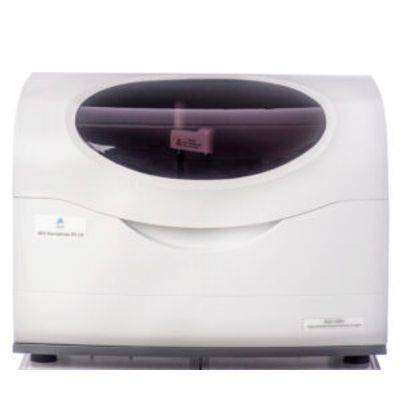

AGD - Model AGD2260 -Fully Automatic Clinical Chemistry Analyzer

Throughput

• Up to 200 tests per hour

Reaction system

• 90 Special cuvettes
• Length of cuvette – 6mm
• Reaction volume-200μL to 500μL
• Reaction time – 8 – 10 mins
• Reaction temperature:37±0.1°c

Methodology

• Measuring principles: Absorbance photometry, Turbidimetry ,End-point, Two-point, Kinetic,/Dual/ reagent chemistries,monochromatic /bichromatic

Power Requirements

• Power supply AC100-240V, 50-60Hz
• 1 KVA

Sample Arrangement

• 40 positions for sample, STAT, Calibrator, and QC
• Sample volume:2-50μL,step by 0.1μL
• Compatible with primary collection tube, minimal tube, sample cup, etc

Operating configuration

• Operation system Windows 2000 or XP Interface RS-232
• Memory Upto 200,000 patient data
• Temperature 10°c-35°c Humidity upto 90% with no dew

Reagent arrangement

• 40 reagent positions for R1 and R2
• Volume range: 10-500μL, step by 1μL
• Reagent Probe – Liquid level detection, collision protection function
• On board cooling ( 2°c- 8°c )

Optical system

• 9 wavelengths: 300-700nm
• Tungsten halogen lamp
• Absorbance range:0-4.00Abs
• Spectrophotometry; rear spectrophotometry

Laundry system

• Needles: 8 step washing sequence.
• Water Consumption- Upto 4 l/hr

Mixing system

• Independent mixing probe
