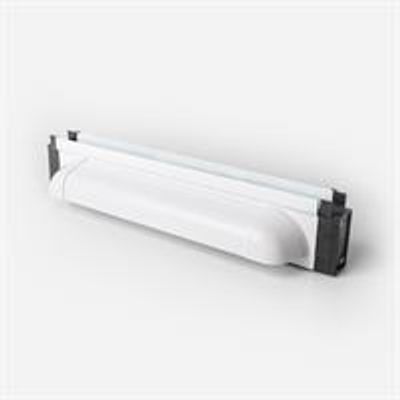

Airstrip - Model Hi -Glazed & Underglaze Ventilator
The RW Simon Ltd Underglaze has been designed to achieve a higher airflow through a single window. Ideal for single facades where a much higher airflow is required in high and low positions, in order to meet the requirements of Document F 2010.
Most popular related searches
- Double the Equivalent Area can be achieved by combining the Simon Underglaze with either the Airstrip 19000 or Simon H iG laze at the top of the window
- Storm locks available if required, for exposed locations
- Fitted with storm seal in internal flap
- Simon Underglaze fits at the bottom of the sealed unit, Simon Hi-Glaze fits at the top of the sealed unit
- Available with knob control or permanently open
- Suitable for 20mm, 24mm, 28mm and 32mm double glazed units
- Standard colours: White (RAL9910 HIPCA satin). Black (RAL 9005 matt), Brown {RAL 8019 matt)
- Using a combination of the two vents alleviates the need for mechanical extract ventilation
- Glass height reduction is 64mm for each unit, 128mm with a vent in both the top and the bottom (please check with system supplier)
