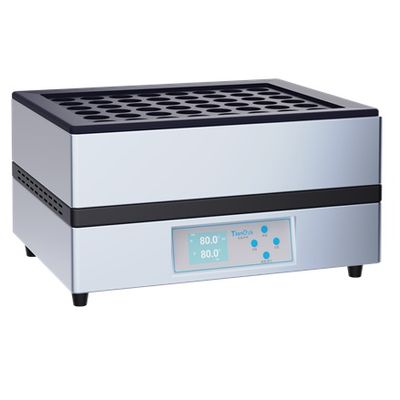

Tianyi Zhongke - Model GRD-64 -Graphite Digestion System
The Tianyi Zhongke-GRD-64 graphite digester, as an upgraded version of the classic wet digestion equipment, features simple and convenient operation, high cost performance, and is an ideal pretreatment device for spectroscopic equipment.
Most popular related searches
The Tianyi Zhongke-GRD-64 graphite digester, as an upgraded version of the classic wet digestion system, features simple and convenient operation, high cost-effectiveness, and is an ideal pretreatment system for spectral equipment.
- Product Model: GRD-64
- Manufacturer type: Production company
- Updated: March 20, 2025
- Number of visits: 4402
- Brand: Tianezk
- Heating principle: Electric heating
- Heating temperature: 450℃
- Price range: 10,000-50,000
- Origin Category: Domestic
- Reagent channel: 64
- Temperature control accuracy: ±0.1℃
- Digits of Digestion: 64-bit
- Instrument Type: Graphite Digestion
- Application Areas: Environmental protection, food/agricultural products, chemical industry, agriculture, forestry, animal husbandry and fishery, geology and mining
- Product Name: Graphite Digestion Instrument
- Product Model: GRD-64
- Batch processing volume: 64 holes
Tianyi Zhongke-GRD-64 graphite digester is suitable for sample heating treatment in industries such as food, medicine, environmental protection, chemical industry, geology, metallurgy, materials, universities, and research institutes.
- It adopts PID microchip control temperature control technology and LED digital display temperature control, which has high temperature control accuracy.
- Integrated control, surround heating, continuously adjustable temperature, and processing of multiple samples in the same batch.
- High-purity graphite is used as the heating material, and the heating surface is coated with Teflon to resist acid and alkali corrosion.
- Equipped with a heater malfunction and overheating alarm device, and automatic alarm for exceeding the temperature limit.
- Double-layer insulation with air insulation layer and fiber insulation layer, and equipped with air duct insulation, resulting in good insulation effect.
- Power supply: AC 220V±10% 50Hz.
- Temperature control range: room temperature ~ 250? (450? for high temperature type).
- Temperature difference between holes: ?±1?@100?.
- Standard hole configuration: ?31mm or 39.5mm optional (other sizes can be customized).
- Number of holes: 64.
- Power: 4800W.
- Digestion vessel capacity: 50ml or 100ml optional.
- Digestion material: PTFE, borosilicate glass, or quartz are optional. (If hydrofluoric acid is required, please select a PTFE digestion vessel.)
- External dimensions: 455X455X265mm.
- Net weight approximately 35KG
