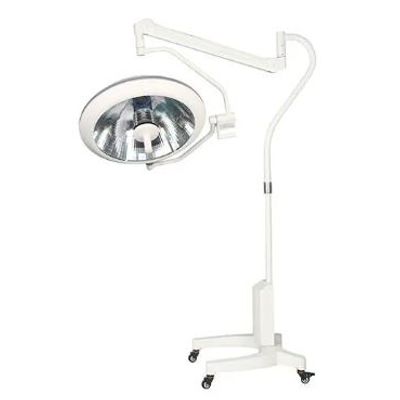

Wanyu OSRAM - Model DL700 -Halogen Mobile Operating Theatre Light
The DL700 Halogen Mobile Operating Theatre Light is designed to provide versatile illumination solutions in medical environments. This device can be configured in three installation modes: ceiling-mounted, mobile, and wall-mounted to accommodate various surgical settings. It boasts 3800 precisely aligned mirrors and delivers an illuminance ranging from 90,000 to 160,000 lux with a color rendering index (CRI) above 96. The color temperature hovers around 4500K, providing a neutral daylight-like ambiance suitable for surgical precision. Its adjustable focus spans 12 to 30 cm, accommodating intricate procedures like spinal and burn surgeries. Featuring an alloy-aluminum housing, the DL700 efficiently dissipates heat, safeguarding both surgeon and patient from excessive warmth. The unit incorporates OSRAM bulbs with a service life exceeding 1000 hours and integrates a robust medical heat insulation glass to stabilize temperature increases.
Quality Reflectors
The reflector is made of non-ferrous metal materials at one time and has a deep anti-oxidation treatment (non-coated) to ensure that it will not oxidize and fall off for a long time
Effective Heat Manage System
Alloy-aluminum housing allows effective heat dissipation, which eliminates the heat at the surgeon head and the wound area.
Continuous and Stable illumination
The multi-mirror reflection system minimizes the loss of light intensity and produces an illumination depth of more than 1400mm, which can obtain continuous and stable illumination from the initial incision to the deepest surgical cavity
OSRAM Bulbs
The light bulb adopts OSRAM bulb, the service life is 1000 hours.
Medical Heat Insulation Glass
South Korea imported medical heat insulation glass, so that the temperature rise is not higher than 10 degrees, and will not cause the risk of water evaporation in the injured area
Double Guarantee
With the main bulb fault indicator and auxiliary bulb detection function, to ensure that the main and auxiliary bulbs are in good condition before the operation
Rod Bent Mobile Base
Elegant shape, in line with engineering mechanics principles, accurate positioning without drift. Customized plan can be made according to the doctor's actual height
Battery Back-up System
The battery has a sea and land transportation appraisal report, which is safe and reliable. Fast charging and long use time. In case of power failure, it can support 4 hours of normal use
- Surgical centers
- Trauma centers
- Emergency rooms
- Clinics
- Veterinarian surgical suites
D700 Halogen mobile operating theatre light is available in three ways, ceiling mounted, mobile and wall mounted.
DL700 refers to halogen mobile operating theatre light.
This mobile halogen operating light contains 3800 mirrors. It can providing up to 16,000 illuminance, and high CRI over 96 and over 4000K color temperature. Manual adjustable focus, 12-30cm, which can meet the needs of spinal surgery with small incision to large-scale burn surgery.
