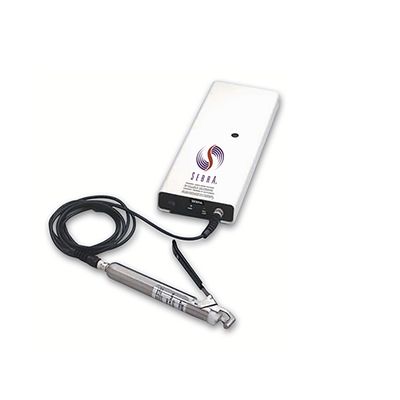

Sebra - Model 2380 -Hand-Held Tube Sealer
The SEBRA® Model 2380 compact, portable, battery powered, hand-held tube sealer meets the most stringent requirements for quality and reliability in high-volume, intensely demanding settings. Accommodating the hand-held sealing head (Model 1105), the system adjusts automatically for different sizes of tubing. The durable design fits in virtually any work area, and is ideally suited for mobile whole blood donation areas, component processing centers and stem cell laboratories. SEBRA sealers are based on state-of-the-art radio frequency (RF) energy rather than heat, thus minimizing the threat of hemolysis. In less than 2 seconds, the SEBRA 2380 sealer provides a consistent, airtight seal you can rely on for all your mission-critical blood collection and processing needs.
- Whole blood collections
- All types of apheresis collections
- Plasma collections
- Leukoreduction processes
- Component processing
Fast and dependable, this RF generator teamed with the hand-held sealing head. The energy level and seat time are controlled by proprietary solid-state circuit design allowing various tubing sizes to be automatically accommodated.
- Smart Technology power adjusts automatically to accommodate different sizes of tubing
- Removable NiCad battery pack recharges in 2 hours
- Produces wide tear seals
- Easy-to-clean detachable head
- Streamlines and simplifies workflow in a variety of settings with more seals per charge than any other commercially available sealer
- Adjusts easily to changing requirements with no manual intervention
- Saves time with seals that are easy to visualize and tear
- Provides reliability and security for processing of temperature sensitive samples
- Reduces costs by minimizing discards
- Whole blood collections
- All types of apheresis collections
- Plasma collections
- Leukoreduction processes
- Component processing
System Specifications
Dimensions: 13.3 x 4.8 x 1.6 inches (33.8 x 12.2 x 4.1 cm)
Operating Weight: 4 lbs (2.1 kg)
Electrical Specifications
Certifications: cTUVus
Power Input: 12V NiCad Rechargeable Battery, 100-240 VAC, 50/60 Hz
RF Power Output: 40 Watt minimum into matched 50Ω load, at initial power up
Radio Frequency Output: 40.68 ± .02MHz
Performance Factors
Capacity: Approximately 1200 Seals per fully charged battery
Sealing Time: 1-2 Seconds - varies by tubing
Max Seal Rate: 55/minute
Seal width: 0.087 inches (2.21 cm)
Tear Strength: 3.99 lbs (1.8kg) - varies by tubing
Tubing: Whole blood, apheresis
Operating Conditions
Temperature: 4 to 38° C
Humidity: Up to 70% Relative Humidity
Altitude tested up to: 6562 FT / 2000 M
