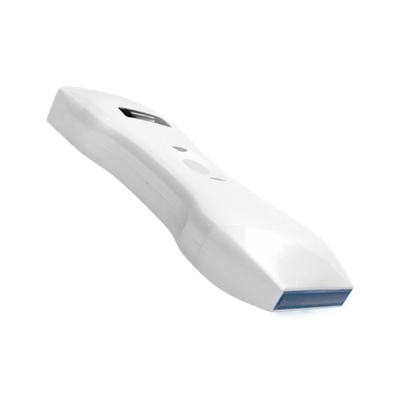

SonoHealth - Model D5CL -Handheld Ultrasound Scanner
The SonoHealth Handheld Ultrasound Scanner is an innovative device designed for efficient and versatile imaging. This portable ultrasound scanner integrates the main unit into a compact circuit board housed within the probe, making it lightweight and easy to handle. Images are transmitted to smartphones or tablets via an internal Wi-Fi connection or USB, without requiring an external Wi-Fi network. It supports both iOS and Android devices, allowing seamless switching between devices. The scanner is tailored for various medical applications, providing clear imaging essential for diagnostic procedures. Its adaptability makes it ideal for personal use, professional medical environments, or for those needing OEM/ODM services. With a focus on user convenience, it offers tools that simplify the scanning process, aligning with modern digital and portable healthcare demands.
- Model : D5CL
- Display : Phone Or Tablet Screen
- Probe Type : Convex Array + Linear Array
- Scan Angle / Length : Convex 60, Linear 40mm
- Frequency : Convex Probe 3.5 / 5.0 MHz, Linear Probe 7.5 / 10 MHz
- Scan mode : B, B/M, Color, PW
- Display Depth : Convex 90 ~ 305mm, Linear 20 ~ 100mm
- Image Adjust : Gain, Depth, DR, Focus, SRI, Harmonic
- Measure : Length, Area, Velocity, HR, S/D, Obstetrics, Auto Blood Vessel Measurement
- Puncture Assist Function : In-plane Puncture Guide Line, Out-of-plane Puncture Guide Line, Needle Enhance
- Image Frame Rate : 20 Frames / Second
- Cinplay : >50s
- Power : Built-in Lithium Battery, Wireless Charge 2h, Work 2.5h
- Working System : iOS, Android, Windows
- WiFi Type : 802.11n / 2.4G / 5G
- Dimension : 156x60x20mm
- Weight : 250g
- Composed of two probes (Integrating three scanning modes: Convex, linear and phased array), which can be applied to multiple applications at the same time, including cardiac examination.
- High cost-effective, lower cost than buying three separate probe.
- Small and light, easy to carry and operate, very suitable for emergency clinical, hospital ward inspection, community clinical and outdoor inspect.
- Wireless connected to tablet or smart phone, can be conveniently used in surgery without fixing of cables. And by using the disposable protecting cover, it can easily solve the sterilization issue of the probe.
- For powerful communication capability of the smart terminals, the wireless probe can meet the needs of the telemedicine.
- Software is free for life.
- Waterproof design, convenient for sterilization.
