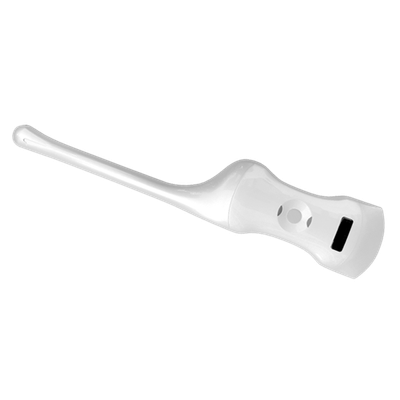

SonoHealth - Model D5CE -Handheld Wireless Ultrasound Scanner for Medical Diagnoses
The SonoHealth Handheld Ultrasound Scanner is designed to enhance the efficiency of medical diagnoses across a variety of applications, including follicular monitoring, prostate and pelvic examinations, as well as assessing bladder and urinary functions. It is specifically engineered for use in OB/GYN applications. The scanner features a compact design with its main unit miniaturized into a small circuit board built into the probe. It boasts versatile connectivity options, allowing image displays on iOS and Android devices via an app, using either internal WiFi or USB connections. This makes it easy to switch between devices and perform diagnostic imaging efficiently, even for non-professionals. The scanner's waterproof design and wireless charging capability add to its usability in diverse clinical environments.
- Model : D5CE
- Display : Phone Or Tablet Screen
- Probe Type : Convex Array + Transvaginal Array
- Scan Angle / Length : Convex 60, Linear 40mm
- Frequency : Convex Probe 3.5/5.0 MHz, Linear Probe 6.0/8 MHz
- Scan Mode : B, B/M, Color, PW
- Display Depth : Convex 90~305mm, Transvaginal 40~100mm
- Image Adjust : Gain, Depth, DR, Focus, SRI, Harmonic
- Measure : Length, Area, Velocity, HR, S/D, Obstetrics, Auto Blood Vessel Measurement
- Puncture Assist Function : In-plane Puncture Guide Line, Out-of-plane Puncture Guide Line, Needle Enhance
- Image Frame Rate : 20 Frames / Second
- Cinplay : >50s
- Power : Built-in Lithium Battery, Wireless Charge 2h, Work 2.5h
- Working System : iOS, Android, Windows
- WiFi Type : 802.11n / 2.4G / 5G
- Dimension : 270x60x20mm
- Weight : 300g
- Composed of two probes, a scanner can complete surface and vaginal examination as your choice.
- Small and light, suitable for bedside operation and monitoring.
- Wireless, by using the disposable protecting cover, it can easily solve the sterilization issue of the probe.
