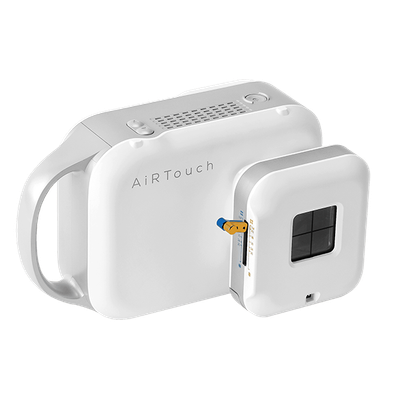

LMT - Model AiRTouch 602 - Handheld X-ray Device

Adjustable Collimator

Enables precise adjustment of the exposure area with knobs, featuring LED lights for guidance and an automatic distance measurement sensor for operational convenience.

USB Ports

Provides USB 2.0 and USB 3.0 ports for powering peripheral devices.

7” Touch Screen Display

Facilitates easy operation of the device, allowing users to adjust exposure parameters and view images directly on the high-definition 7” touch screen display.

Ethernet Port

Includes an ethernet port for connecting the exposure hand switch.

Charging Port

Offers simple battery charging; can be plugged directly into a residential 120V outlet.

Remarkably Lightweight and Compact

AiRTouch 602 is extremely lightweight and compact, weighing only 2.5 kg. This makes it easy for medical professionals to take it with them between clinical settings for examinations, without compromising image quality.

Adjustable Collimator and LED Light

AiRTouch's adjustable collimator and LED light assist operators in precisely controlling the size and shape of the X-ray beam. The LED light also helps to target the area of exposure, making each examination more precise.

Efficient Workflow with Built-In PC and Touchscreen

The integrated PC and touchscreen allow operators to view images directly on the device, eliminating the need to transfer images to another computer. This saves time and streamlines the diagnostic workflow. The 7" touchscreen provides clear image viewing in a portable and user-friendly format, making the workflow even more efficient.

• Power Output : 120 w
• Max. kV : 60 kV
• Max. mA : 2 mA
• Exposure Time : 0.03 ~ 1.3 sec
• Focal Spot : 0.8 mm
• Battery Capacity : 22.2 VDC / 1,000 mAh
