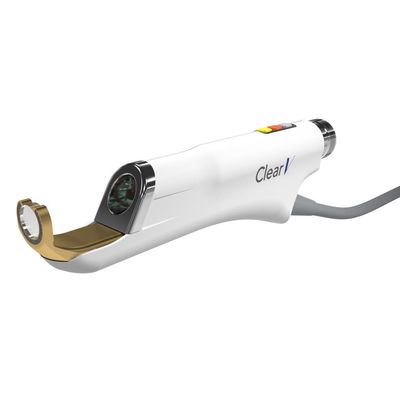

Sciton - Model ClearV -Handpieces for Vascular Treatments

Subsurface Vein Illumination (SVI®)
Using two colors of light, SVI offers custom color blending and three brightness intensities to help illuminate targets for more precise treatment of vessels.

Integrated Spot Size Adjustment
Select the right spot size for the job—without the use of adapters or additional handpieces—to minimize downtime.

Adjustable, Cooling In 1-Degree Increments
A sapphire tip provides optimal cooling before, during and after treatment from 5-25° C, as well as bulk cooling for patient comfort.

Technology

• Wavelength 1064 nm Nd:YAG
• Fluency Up to 400 J/cm2
• Pulse Width Up to 200 ms
• Repetition Rate Up to 20 Hz Spot Size
• ClearV: 2-6 mm
• Skin Cooling ClearV: Adjustable, 5 °C to 25 °C Contact Chiller 250 W thermoelectric chiller
• Continuous contact sapphire plate

01. Overview
ClearV uses a 1064nm Nd:YAG laser to address veins, vessels, and rosacea whose causes lie below the skin’s surface.

02. Eliminating Targeted Vessels
Using both yellow and orange lights, the LEDs around the sapphire plate illuminate unwanted vessels to allow for precise targeting and treatment. Laser pulses are absorbed by the unwanted vessels, closing them and preventing them from returning. The vessels are then eliminated naturally by the body over time.

ClearV is the preferred choice for vascular treatments since it effectively and safely treats visible vessels, broken capillaries, spider veins, vascular lesions, and skin discoloration. Undesirable visible micro vessels will be gently eliminated. Resistant unwanted subsurface vessels will be heated by the laser energy and will fade over time and become less noticeable.
