Mokon Pura-Therm - Heating and Chilling System for Medical and Pharmaceutical Applications
Mokon's Pura-Therm heating and chilling system provides integrated temperature control solutions crucial for the medical and pharmaceutical industries, notably during the development of COVID-19 vaccines. This comprehensive system combines heating and chilling functions within a single, compact unit, which facilitates control over a temperature range of 20°F to 250°F (-7°C to 121°C). Constructed from durable stainless steel and compliant with ISO Cleanroom Standards, the Pura-Therm system is ideal for applications requiring precise temperature regulation. It plays a significant role in both the production and R&D phases of vaccine development, as well as in the manufacturing of pharmaceuticals, industrial hemp, and food products. The unit offers flexibility with portable versions, multiple configuration options, and the ability to customize features such as compressor horsepower and pump flow rates to meet specific operational requirements. The system's effectiveness is further enhanced by air-cooling and water-cooling capabilities under specified conditions.

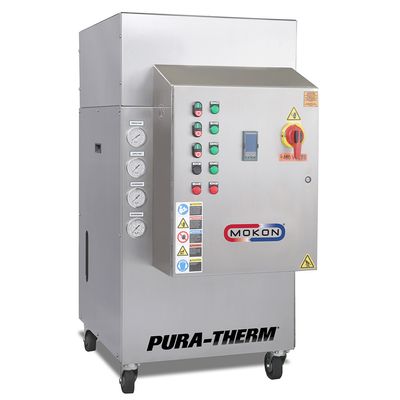

Pura-Therm Heating and Chilling System
Mokon's water based Pura-Therm temperature control system offers a combination of heating and chilling in one superior package. A Mokon water system combined with a chiller integrates the benefits and features of both products into one compact, self-supporting unit. The Pura-Therm heating and chilling systems are available with a temperature range of 20°F to 250°F (-7°C to 121°C).
- 304 SS cabinets
- NEMA 4X panels
- Heating: stainless steel wetted parts
- Cooling: non-ferrous materials
- Wash down designs
- Suitable for ISO 14644 Cleanroom Standard and associated controlled environments
- cULus 508A labeled panel
- UL 98 disconnect switch
- Microprocessor controls
- Remote set point, retransmission controllers and communication capabilities
- Open loop (direct injection) single circuit
- Incoloy sheath heaters
- Stainless steel pump with silicon carbide pump seals
- TEFC motors
- Suction and discharge pressure gauges
- Non-marring casters
- Process temperatures up to 380°F (193°C) and cooling down to -20°F (-29°C)
- Heating capacity up to 96 kW and up to 120 Ton chilling capacity
- Closed loop (indirect cooling) and multi-zone circuits
- 3-A heat exchangers and heat remover designs for process isolation
- Magnetic drive sealless and high-efficiency pumps
- Vented and pressurized tanks in a variety of materials
- Sanitary tri-clamp and flanged connections
- 316 SS, passivation and electro-polished surfaces
- Welded connections
- Tool-free access panels
- Modulating cooling valve
- SCR and solid state relays
- Remote interface enclosures and communication options
- Electronic controllers and RTD's calibrated to ISO 17025 standards
- CSA, CE and other System certifications
- Biotechnology and pharmaceutical
- Cleanroom, sanitary and critical environments
- Extrusion
- Food and beverage processing
- Heat exchanger
- Hybrid composite materials
- Kosher
- Laboratory
- Medicine and vitamin processing
- Microelectronics
- Mixers and blenders
- Packaging
- Pet food processing
- Personal care/cosmetics
- Plastic injection and blow molding
- Reactors, sterilizers and fermenters
- Surgical equipment and devices
- Vessels/jacketed tanks
