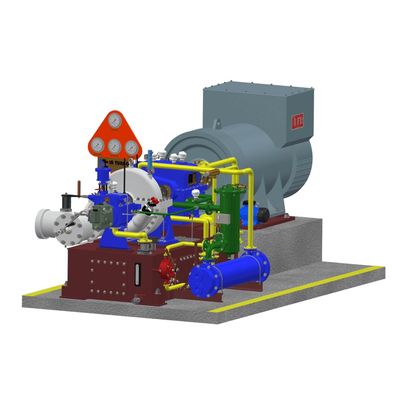

Model HBP – 6SS -High Back Pressure Turbine
HBP – 6SS is a unique frame specially developed for Industries with a high process pressure requirement. It has been widely used in chemical plants , pharmaceutical and plywood industries . The combination sealing arrangement ensures reliability and long duration between overhauls. A high degree of customisation is offered, as it can be used for both, standalone as well as grid synchronous operation. It also has an Induction generator-based variant that is best suited for fluctuating steam demand-based industries, to make the required system pressure.
Most popular related searches
Single Stage High Back Pressure Turbine that can be operated at 3000 / 5000 / 6000 RPM
- Suitable upto 45 Bar of Inlet Pressure.
- Designed for High Back Pressure Applications upto 10 Bar
- Hybrid Labyrinth and Carbon Ring type steam seals.
- Can be provided with Hydro-Mechanical or Electronic Governors.
- No requirement for Control Oil System.
- Available with ring lubrication and forced lubrication options.
- 2 nos Hand Valve for Optimised operation at Part Load conditions.
- Available with Options of Alternator Drive And Induction Generator Drive for seamless synchronising and Back Pressure Control.
- Suitable for Mechanical drive Operation.
- Horizontally Split Steam casing ensures easy inspection of the internals without disturbing the steam line.
