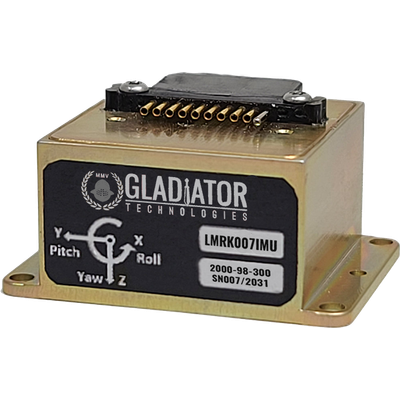

Gladiator Technologies - Model LandMark 007 -High-Speed Six-Axis Inertial Measurement Unit
The LandMark 007 IMU is engineered for high dynamic environments, combining low-noise and high-range inertial sensors with VELOX technology to deliver filtered digital output. This six-axis IMU provides a rate range of 2000°/s and an acceleration range of up to 98g, ensuring precision in demanding applications. It achieves data rates up to 10 kHz with a message delay of 114µs. The unit operates effectively in a temperature range from -50°C to +85°C, and is factory calibrated and conditioned to withstand shock and vibration. It features a bias over temperature of 0.075°/s and a scale factor error of 600 PPM. The IMU's robust design includes input voltage between +4.5V and +5.5V, consuming 280mW to 450mW of power. With a compact mass of 19.25 grams and dimensions of 2.54 x 2.54 x 1.65 cm, it supports external synchronisation and multiple output formats at up to 7.5 Mbaud.Most popular related searches
inertial measurement unit
shock and vibration
inertial sensor
noise sensor
sensor system
built environment
High speed, six-axis IMU built for high dynamic environments.
This IMU is equipped with low noise sensors and VELOX™ high speed processing and user configurable firmware. Only 0.7 cubic inches, the LandMark™007 comes factory calibrated over the full temperature range and conditioned over environment.
2000°/s: Rate Range
98g: Accel Range
0.0025°/s/√Hz: ARW
10 kHz: Data Rates
114µs: Message Delay
0.075°/s: Bias Over Temperature
- Low Noise. High Speed. High Dynamics.
The LandMark™007 IMU combines low noise, high range, inertial sensors and VELOX™ technology in a robust package built for performance in high dynamic applications.
- VELOX™ High Speed Processing
Gladiator Technologies’ cutting edge data processing suite enabling filtered digital output without sacrificing inertial performance.
- Factory Calibrated
Gladiator Inertial products are factory calibrated, modeled and conditioned over temperature, -50°C to +85°C, shock and vibration.
