SnowPure - Model EXL HTS Series - High-Temperature Pharmaceutical EDI
High Temperature Stable EDI for Pharmaceutical OEMs Now to 85°C. Key Benefits Include: Hot Water Sanitizable at 85°C / 185°F. 15 min up to 2 hrs (see USP recommendations). Rapid Heat/Cool Cycle — up to 160 cycles. New High Temperature FDA Urethane Materials. Pharmaceutical Stainless Steel (EXL option). Light, Compact, Easy to Ship and Handle.
Most popular related searches
- SnowPure believes strongly in training—this helps ensure field success with Electropure™ EDI systems.
- SnowPure assists new OEM customers through their system design phase.
- Our customers also have access to our Best Practices P&IDs to aid in their EDI system optimization.
- Combined with ongoing Technical Service, we help ensure success.
- Continuous Process-no upsets
- Operating cost is minimized
- No hazardous waste, no associated costs and risks
- No regeneration acid or caustic
- Flexible—easy to expand a modular EDI system
- Reliable—no recirculation system components to fail
- Electropure™ EDI technology was born in 1977,
- before Ionpure
- SnowPure is privately held
- SnowPure is your partner, not a competitor. “We Don’t Compete with our Customers.”
- High quality Electropure™ EDI training and OEM support
- No concentrate recirculation or brine injection
- Thin-Cell efficient technology
- Thin-Concentrate non-scaling technology
- Unique non-scaling electrode system
- Patented Excellion™ membranes

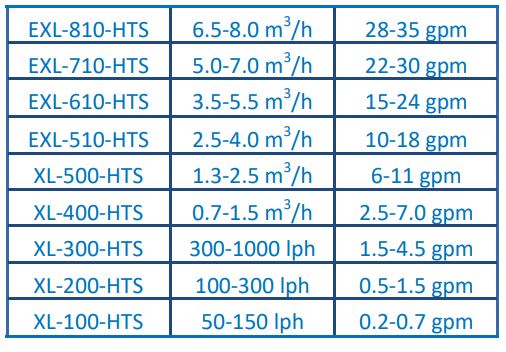

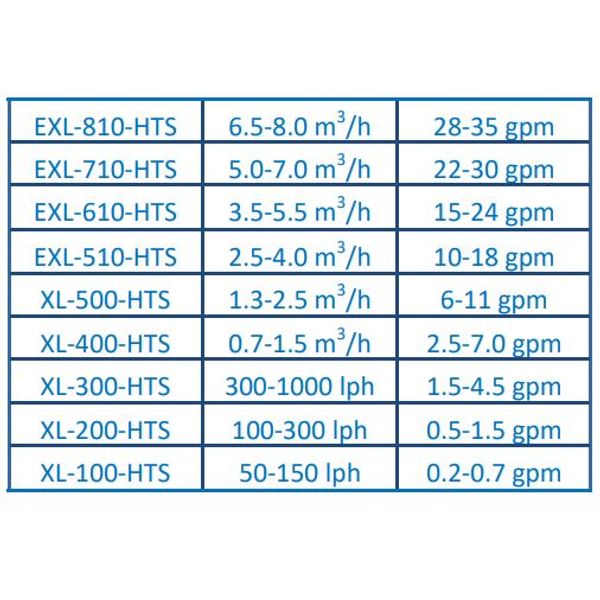

- EXL-510-HTS
- EXL-610-HTS
- EXL-710-HTS
- EXL-810-HTS

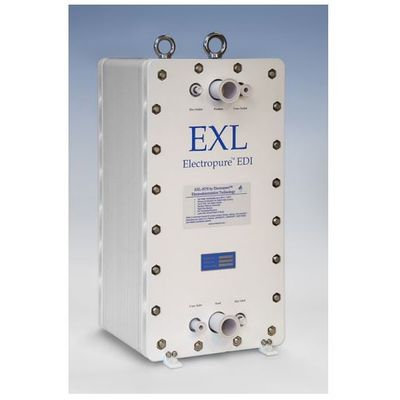

- EXL Modules have permanent O-Ring seals on each chamber and require no torqueing
- Electropure™ EXL products have the same physical profile as E-Cell MK3 and Ionpure LX modules.
- EXL includes SnowPure’s patented Excellion IX membranes
- EXL feed and product ports options:
- +GF+ Unions 40DN32 1-1/4”
- +GF+ Unions 32DN25 1”
- Sanitary DN40 1-1/2″ Tri-Clamp®
- Sanitary MAXI 1″ Tri-Clamp® (E-Cell MK2 and MK3 replacement) for EXL-510-HTS, 610-HTS, EXL-650
- +GF+ Half Unions can connect to:
- Metric, US, or Japanese
- PVC, PP, PVDF, or SS
- Threaded or solvent welded pipe
- EXL concentrate port options are Metric or US tubing, or MINI Sanitary Tri-Clamp
- EXL electrode port options are Metric or US tubing
Note: The above fitting options work with all EXL models interchangeably.
XL-HTS™ and EXL-HTS™ are in stock in a variety of capacities to meet the needs of any pharmaceutical system.
