Arktis - Model M800 -Highly Sensitive SiPM-Based Large Area Neutron Detector
He-3-free, highly sensitive and scalable neutron detectors. For seamless integration into detection systems such as radiation portal monitors, mobile detection systems or measurement networks. The M800 is powered via PoE* and accessible by its IP address, making integration and maintenance straightforward. The M800 allows operation in magnetic fields and does not require high voltage.
Case Studies: M800 Integration
- Integration in RPMs as technology upgrade
- Integration into tactical vehicles (pursuers, patrols etc.)
- Coastal guard speed boats integration
Technology Description

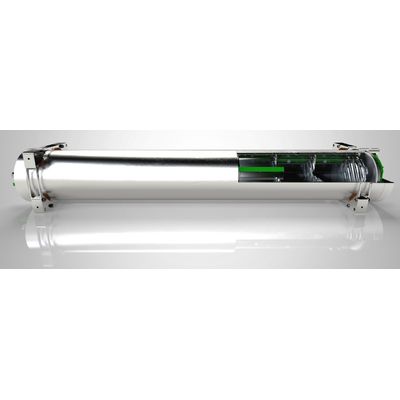

Helium-4 is used as a scintillation medium. Helium-4 (natural helium) has proven to be an excellent choice for a neutron detection medium as it is transparent to its own light and has low electron density, making it insensitive to gamma radiation. A proprietary, large area LiF-based coating inside the detector tube captures neutrons, emitting highly energetic charged particles in the process. The energy of the charged particles is converted into light and detected by SiPM light sensors. On board electronics perform digital pulse shape discrimination to reject gamma-induced events and provide a pulse for every detected neutron. Robustness is achieved by eliminating fragile components such as crystals, photomultiplier tubes and sensitive anode wires.
- Replaces obsolete 3He-based detection assemblies
- Simple integration into detection systems
- Also suitable for large area monitoring
- PoE based
- Excellent performance to cost ratio
- Based on LiF and noble gas
- Modular, scalable, straightforward integration
- Rugged SiPM** -based design (no PMT)
- He-3 free, not dependent on scarce or expensive materials
- No high voltage required
- IP adressable
- Not susceptible to magnetic fields
- No toxic materials
- Based on LiF converter foils and noble gas scintillation
- Ingress-proof environmental package on request
- Package: Detector with integrated signal processing. User configurable data broadcasted on TCP/IP.

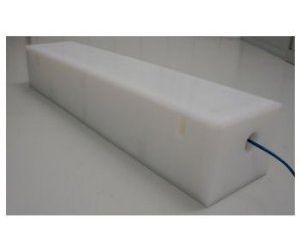

- Physical Specifications: Size: 916.2 mm x 144 mm x 144 mm, weight: 8.6 kg (without HDPE moderator)
- Neutron Sensitivity: 0.5 -1.05 cps/ng Cf-252 at 2 m (1 ng Cf-252 emits ~2300 n/s), depending on HDPE moderator
- Gamma Rejection:
- Gamma rejection: <10-6
- Gamma immunity up to 100 µSv/hr with 0.9 < GARRn* <1.1
- Signal Output:
- A single Ethernet cable serves as the control and signal output interface
- TTL output optional. TTL pulse width: standard 80 ns, can be programmed from 10-2560 ns.
- Control Cable Connection RJ45 (Cat6)
- Power Supply:
- IEEE 802.af Type 1 Class II; Typical consumption: 4W
- No high voltage required
- Operating Temperature: -30°C to 55°C
- Storage Conditions: -30 °C to 65 °C
- Case: IP65 rated Aluminum Casing
- Relative Humidity: up to 93% at 40 °C
- Salt Water Spray: up to 5% NaCl at 35 °C
- Ingress Protection Degree: IP62
- Standards: CE; 2014/68/EU
- Certifications: IEC 60068-2-66, 60529:2014 (IP6X, IPX5, IPX4), IEC 62706:2012-12, IEC 62706, table 5 EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 61000-4-8 ANSI42.43-2016/7.2, ANSI42.43-2016/7.4, ANSI42.43-2016/8.2, ANSI42.43-2016/8.3, ANSI42.43- 2016/9.3, IEC 62244:2006/8.1, IEC 62244:2006/8.3, IEC 62244:2006/8.4, IEC 62244:2006/8.5, IEC 62244:2006/10.2
