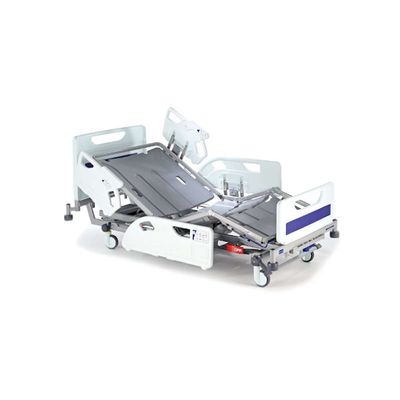

Model 8000X -Hospital Beds
The Enterprise 8000X hospital bed from Arjo delivers significant benefits to the patient, caregiver and healthcare facility. The daily challenges faced by nursing teams on hospital wards have inspired Arjo to improve upon an established solution, trusted by hospitals around the globe. In the development of the Enterprise 8000X hospital bed, Arjo has focused on key customer needs common to all healthcare environments, namely: Safety for both patient and carer. Compliance with new international standards. Equipment that is robust, intuitive and easy to use. Solutions focused on the quality of care for patients. The Enterprise 8000 has been independently tested by a globally renowned organisation, to certify that it is compliant with the latest stability, dimensional and safety requirements of the IEC60601-2-52 Standard.
Safety
A safe environment is critical to the well being of patients and carers. Falls affect as many as 10% of older adults during an acute care inpatient stay and can result in serious and often life-threatening injuries.¹
Intuitive operation and ease of use
Our one-button-push controls are intuitive and easy to use, thanks to clear and simple icons. One touch functions can be used for key features, such as:
- Auto CPR
- 30 degree backrest angle
- Auto-contour
- Cardiac chair position
- Low height and extra low height
- Trendelenburg / reverse Trendelenburg
Some or all of these functions may be locked out by the caregiver if required.
Enhancing the quality of care
The backrest will pause when raised to an angle of 30 degrees, ensuring easy and positive backrest adjustment time after time. Studies show that the 30 degree backrest angle is the minimum requirement for providing recognised physical, postural and clinical benefits.² The caregiver can easily adjust the bed into a cardiac chair position with our simple to use control panel, by selecting the appropriate icon.
Infection control, pit stop maintenance and service
The Enterprise 8000X bed is designed with open architecture and no base cover to allow ease of access for cleaning and decontamination.
- Blow moulded deck sheets and head/foot panels are lightweight, smooth and easily removable to aid cleaning. The linen shelf provides a convenient storage place for linens during bed making procedures.
- Pit stop maintenance is achieved by designing open accessibility and plug and play components. Changes such as actuator, control box and battery can be carried out in situ within a few minutes by one trained person.
- Equipment is designed to be easy to service and maintain, reducing time spent on cleaning, service and maintenance activities.
Optional: Now available with IndiGo®
IndiGo is the powered 5th wheel that makes lighter transport available to any caregiver with just a touch – for safety and simplicity. IndiGo is always available and built directly into your Citadel or Enterprise bed, so only one thing changes in a caregiver’s day: the amount of work required to move the bed.
Dimensions
Overall standard length (HOD) mm 2300 mm
Overall standard length (HOD) in 90,55 in
Overall standard length (HOB) mm 2350 mm
Overall standard length (HOB) in 92,52 in
Overall width mm 1030 mm
Overall width in 40,55 in
Mattress length standard mm 2020 mm
Mattress length standard in 79,53 in
Mattress width standard mm 880 mm
Mattress width standard in 34,65 in
Overall length, extended (HOD) mm 2420 mm
Overall length, extended (HOD) in 95,28 in
Overall length, extended (HOB) mm 2470 mm
Overall length, extended (HOB) in 97,24 in
Mattress length, extended mm 2140 mm
Mattress length, extended in 84,25 in
Overall length, short (HOD) mm 2190 mm
Overall length, short (HOD) in 86,22 in
Overall length, short (HOB) mm 2240 mm
Overall length, short (HOB) in 88,19 in
Mattress length short mm 1910 mm
Mattress length short in 75,2 in
Top height (with 125 mm castors) mm 760 mm
Top height (with 125 mm castors) in 29,92 in
Low height (with 125 mm castors) mm 320 mm
Low height (with 125 mm castors) in 12,6 in
Backrest length mm 850 mm
Backrest length in 33,46 in
Seat length mm 215 mm
Seat length in 8,46 in
Calf length mm 560 mm
Calf length in 22,05 in
Thigh length mm 365 mm
Thigh length in 14,37 in
Product
Safe working load kg 250 kg
Safe working load lb 551,16 lb
Maximum patient weight kg 185 kg
Maximum patient weight lb 407,86 kg
Safety standard IEC IEC60601-2-52
Electrical
Ingress protection IPX4
Shock protection Class 1, Type B
Power in (230V) 1.25A at 230V
Power in (120V) 2A at 120V
Power in (60Hz) AC 50/60Hz
Angles
Head down tilt 12°
Foot down tilt 12°
Backrest angle 62°
Backrest pause 30°
Thigh angle 20°
Calf angle 16°
