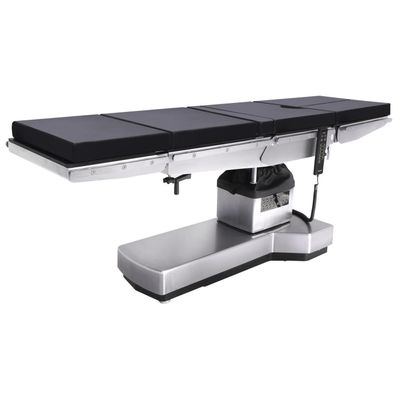

heyer - Model OP850 -Hydroelectric Operating Table for Clinical Settings

• Premium Quality Material
  All exposed parts are made from stainless steel SUS304Easy to clean and disinfectAll control parts are imported
• Built-in Elevator Kidney-bridge

Has no negative effect on X-ray transparencyand is able to support kidney and gall bladder

• Surgical Efficiently

Head and leg sections with excellent radiolucent table guarantee high quality X-ray imagingExchangeable head & leg sectionsOptional with 300 mm longitudinal shifting

• Surgical Configuration

Has one-key reset flex and reflex functionTable angles and section lengths can be adjusted within a wide range with 6 standard and various optional accessories

• Perfect for X-Ray Imaging

Remarkable 320mm longitudinalShifting capability create perfect X-rayGreen ambient light during endoscopic surgery, enhances the sensitivity of human eyes to light under darkness and reduces glare and optical illusion

• Ergonomic Adjustment
  Convenient design for the wrench of leg plate and head plate, able to control leg and head plates with one handImported gas springs guarantee smooth movementImported round-hole clamps enable easy to lock and unlock accessories, ensuring safety during operationAdjustable table height (650-1,000mm) and T- shape base provide comfortable working environment
• High-Efficiency Built-in Battery

Maximum 15 days working timeMaximum 85 normal operations durationNo request for AC power to increase the safety of surgery

• Safety

Auto-lock system: table base will be locked automatically once the position is adjusted by the controller, preventing possible misoperationTwo control modes: manual and column control panel, allowing for backup if one is broken, ensuring the safety of surgery, the Control panel will power off automatically when there is no operation over 1 minute, avoiding any possible misoperationControl panel will power off automatically when there is no operation over 1 minute, avoiding any possible misoperation

• Pads

Have soft texture and stuffed with memory foamUltrasonic bonded and sealed for easy disinfection and sterilizationEffectively reduce the possibility of patient bedsores

• Optional Accessories Features

All table accessories are made of SUS304 stainless steel. All the surfaces are easy to clean and disinfect.With 6 standard and 13 optional accessories, the surgical bed can support a multitude of body positions and procedures, meeting the requirements of most surgeries.

• Table Length(mm): 2,080
• Table Width(without side rails)(mm): 520
• Table Height(without pads)(mm): 650 to 1,000
• Trendelenburg / Reverse: 30°/30
• Lateral Tilt (left/right): 20°/20°
• Back Plate Up/Down: 80°/45°
• Head Plate Up/Down: 30°/45°
• Flex/Reflflex(º): 225 / 100
