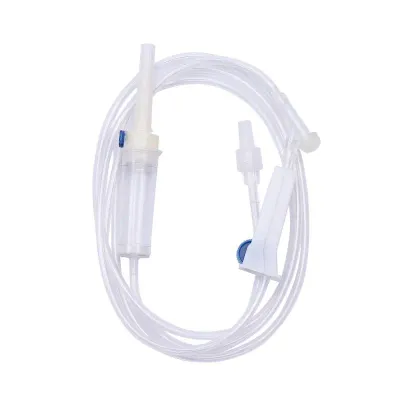

KMED - Model KY-YI-001 -Infusion Set for Luer Lock Applications
The Infusion Set KY-YI-001 is tailored to meet precise medical demands, offering a comprehensive set of features to ensure safe and efficient fluid administration in clinical settings. Designed with a Luer lock mechanism, it guarantees a secure connection between the tubing and catheter, eliminating risks of disconnection during infusions. The absence of a needle aligns with specific medical protocols where needles are either pre-attached or exchanged per procedure requirements. Integral components such as an ABS spike, a 15µm solution filter, and a latex-free Y injection port equip this set for high filtration efficacy and allergy prevention. The vented drip chamber enhances fluid accuracy, while the DEHP-free PVC materials advocate for minimized patient exposure to potential plasticizers. The set's compatibility with existing IV infrastructure, coupled with meticulous sterilization via ethylene oxide, underscores its application in diverse healthcare scenarios. This infusion set exemplifies quality and adherence to stringent health standards.Most popular related searches
infusion set
administration set
iv set
infusion line
allergy prevention
catheter
catheter needle
allergy
medical pvc
iv infusion
- Gravity solution administration set
- ABS spike with protector: It consists of acrylonitrile butadiene styrene (ABS), puncturing the fluid bag or bottle and anchoring the infusion set.
- Air vent: For particles with a diameter of 0.5 μm or more extensive, its filtration rate is equal to or greater than 95%. It serves as the entry point of air coming from the outside environment. The air exerts pressure upon the fluid to facilitate its flow. The blue cap covers the air inlet when not in use.
- Macro 20 drops/ml
- Drip Chamber: PVC or DEHP-FREE (The term DEHP stands for di(2-ethylhexyl)phthalate, which is a softener used in PVC or polyvinyl chloride and helps in softening by increasing the flexibility of PVC. ) It consists of medical-grade PVC. It serves as a venue to count the drip rate of the fluid.
- Solution filter: 15µm filter. The filter’s filtration rate of latex particles should not be less than 90%.
- Y injection port: It consists of ABS and serves as an injection site for medicine and other substances that medical workers need to introduce the infusion line. Manufacturers put in place a latex-free rubber pad to prevent occurrences of allergies.
- Roller clamp: It consists of PE or ABS and regulates the flow rate of the infusion fluid.
- Luer lock connector: The Luer lock consists of ABS, connecting the tubing with the catheter. The Luer lock connector ensures that the connection between the male-tapering fitting and the female mating part of a needle or catheter is leak-free, preventing fluid and medication loss. In addition, this infusion set provides considerable safety and security during the infusion because the catheter or the needle does not accidentally separate from the Luer connector unless the medical workers do so.
- Cap: It is made of PE and helps protect the Luer lock from bacteria and other impurities when not in use.
- Tube: PVC or DEHP-FREE, 150cm
- Sterilized by ethylene oxide
