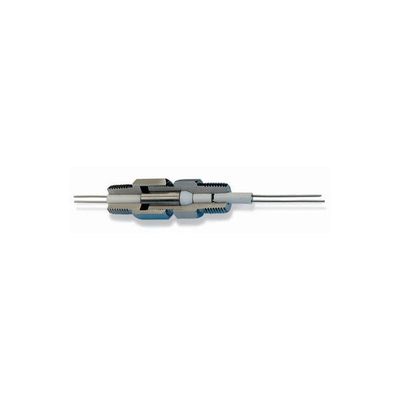

Conax - Model TG & MTG - Instrumentation Wire Compression Seal Feedthrough
Features: Pressure/Vacuum Compression Seal. Stainless Steel Reusable Fitting. “Soft Sealant”. Wires Easily Assembled or Replaced In Field. Temperature Range From -300°F to +1600°F (-185°C to +870°C). Pressure*: Vacuum to 10,000 PSI (690 bar). Seals 1 to 16 Elements.
Most popular related searches
Replacement Packing Set (RPS) consisting of sealant and four insulators is available
Example: RPS-TG-20-2-N
Replacement Sealant (RS) consisting of sealant only is also available
Example: RS-TG-20-2-N
- Pressure or vacuum sealing of various solid bare wire tranducers (i.e., thermocouples, stain gauges, thermistors and RTD leads).
- Sealing of bare solid conductors through a pressure vessel supplying current at low voltage (millivolts) to instrumentation within the vessel.
- Bare wire may be replaced with insulated solid wire with an equivalent O.D. to provide a higher voltage capability. See TG Feedthrough with 24 AWG.
- Seal thermocouple leads on high temperature tubewell type sensors.
