Lyyn Hawk Board - Integration Kit

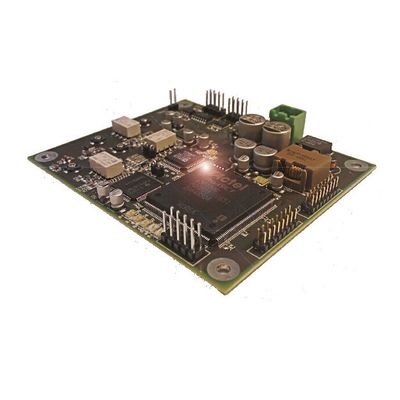

The LYYN Inside™ solution for analog video PAL/NTSC integration board. LYYN Inside™: The LYYN Hawk Board™ is the ideal solution for advanced users, product manufacturers and system integrators that want to have lyynification fully integrated into their own solution.
Simple integration
The kit contains all the necessary parts for simple plug-and-play integration. You connect your video either to the board’s micro connectors or to the included standard BNC connector card. The board can be controlled by the manual control panel included or by software over a standard RS232/485 serial interface.
Standard control panel for manual control

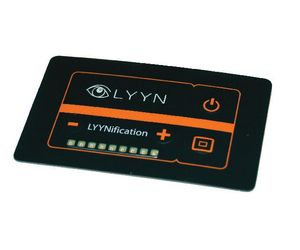

A thin “membrane” panel is included, which can be mounted and sealed to a flat surface with the adhesive backing.
If the application requires a watertight seal LYYN recommends extra mechanical mounting. The panel is connected to the LYYN Hawk Board with a flat cable (included).
User controls
- on/off
- lyynification:
- level
- window position
- window size
Software control

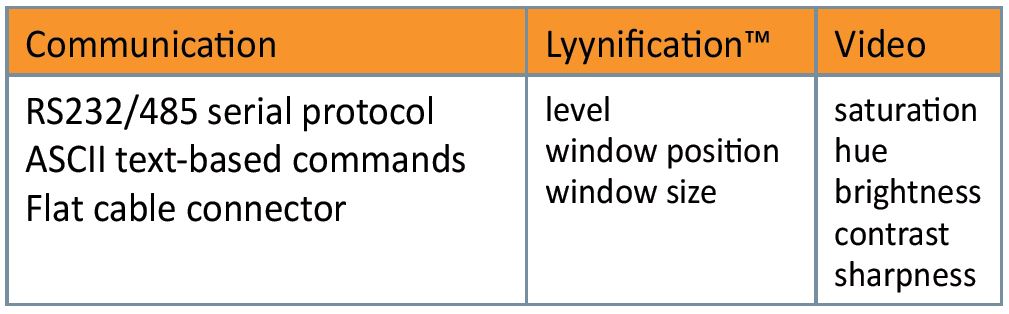

The Hawk Board can be controlled remotely through a standard RS232/485 serial interface over a flat cable connector. A simple standard communications program, like “HyperTerminal” in Windows or “QuickTerm” in Mac OS X, can be used to send ASCII text-based commands. You can also write scripts and software on your own control platform for a more integrated solution.
Video standards
PAL 625-line 25 fps or NTSC 525-line 30 fps, autosensing of format. Standard composite or S-video (separate luminance and chrominance).
Video synchronization
The LYYN Hawk Board has three video synchronization modes. The video output can be synchronized to the video input, an external synchronization signal on a separate micro connector can be used or an Time Based Corrected signal can be obtained by controlling the delay.
Physical connectors
Video I/O: Hirose microconnectors. Separate video connector board with standard BNC connectors and cables included External sync signal: Hirose microconnector
Two control ports, one for the control panel included and one for software control through an RS interface
Included in the package:
- 4 micro BNC connector cables

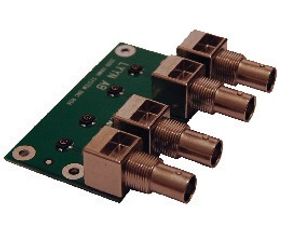

- 1 connector board with 4 BNC connectors
Power
- Nominal input voltage: 12 V DC, 0.2 A.
Operating conditions
- Temperature: 0 — 50 °C (32 — 122 °F)
- Humidity: 0 — 80% RH (non-condensing)
Dimensions and weight
- Hawk Board: 96 mm x 80 mm x 30 mm
- Weight: 150 g
- Mounting holes: 4 x M3
- Control panel: 80 mm x 50 mm x 1 mm
