Simple integration
The kit contains all the necessary parts for simple plug-and-play integration. You connect your HD-SDI video to the board`s micro coax connectors. The board can be controlled by the included control panel or by software over a standard RS232 serial interface.
Standard control panel for manual control

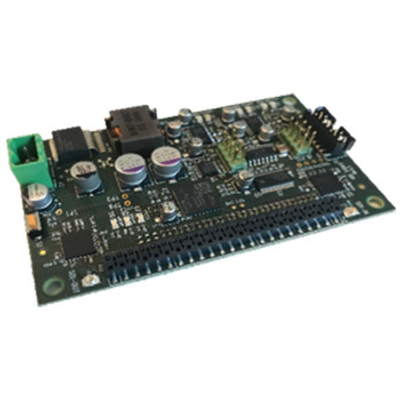

A thin membrane keypad panel is included in the kit. The panels adhesive backing can be mounted and sealed to a flat surface. The panel is connected to the LYYN Eagle Board with a flat cable (included) and an intermediate PCB.
Software control
The Eagle Board can be controlled remotely through a standard RS232 serial interface with simple text commands. You can write scripts and/or software on your own control platform for an integrated solution.
Dimensions and weight
- Board: 55 mm x 90 mm x 30 mm
- Weight: 31 g
- Mounting holes: 4 x M4
- Control panel: 80 mm x 50 mm x 1 mm
Physical connectors
- Video: MCX RF contacts. Use 75 Ω cabling
- Communication2.54 mm through-hole header contacts.
- Samtec HLE-123-02-F-DV-BE-A
Included in the package
- 2 254 mm coaxial cables
- 2 MCX RF to BNC adapters
- Power connector, male & female
- Keypad and associated cabling
Power
- 5 V DC, 1.0 A.
Operating conditions
- Temperature: 0 — 50 °C (32 — 122 °F)
- Humidity: 0 — 80% RH (non-condensing)
Video latency
- 1 microsecond
