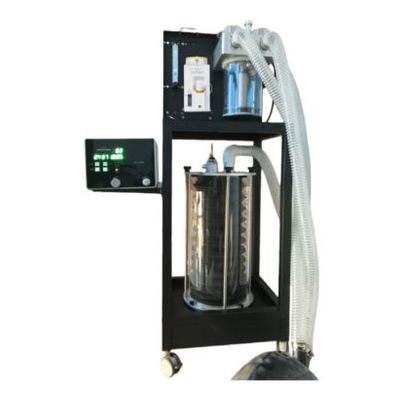

IVETWELL - Model IVT-7900A -Large Animal Anesthesia Machine
IVT-7900A model is the first large animal anesthesia machine designed and produced from China. In China, only our company research, design and produce this type machine now. JX7900A model is an excellent large animal anesthesia machine. It is specially used for large animal, like horse, cow, tiger, pig etc. It can be used in farm, zoo, wild animal zoo, forest park, animal research center and so on.
Inspiration mode: open mode, closed mode, semi-open and semi-closed mode
Gas source:O2,0.3--0.4Mpa
O2 Flush valve:25L/min--75L/min
Flow meter: high precision O2 flow meter, 0 --10L/min, O2&N2O or O2&N2O two tubes flow meter is option.
CO2 circle absorber: with soda lime chamber, Pop off valve, airway pressure gauge, inspiration valve and expiration valve, the inspiration and expiration valve is demo-type and visible.
Airway pressure gauge: -20cmH2O--100cmH2O &-2Kpa--10Kpa
Soda lime chamber:8Liter, it is easy to change soda lime and used for over 1000kg animal.
Bains connector: it is used for open breath circuit, connect with Jackson breath circuit or bains breath circuit.
Anesthesia vaporizer: TEC3 vaporizer. Enflurane, Isoflurane,Halothane,Sevoflurane, one vaporizer with selectatec compatiable mounting bar, Cage mounting vaporizer is compatiable.
Standard configuration:
- Anesthesia machine, one unit X60 anesthesia vaporizer, one set breath circuit, one unit 30L airbag, one unit O2 gas source pipeline. Trolley is optional.
Packing information:
- Main unit with X60 anesthesia vaporizer:68*68*70cm, gross weight:48kg
- Trolley: 133cm*56cm*18cm, gross weight:30kg
