Gladiator Technologies

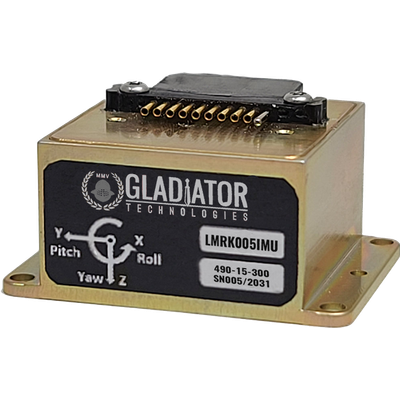

Gladiator Technologies - Model LandMark™ 005 -Low Noise High Speed Six-Axis Inertial Measurement Unit (IMU)
The LandMark™ 005 IMU by Gladiator Technologies is a precision six-axis inertial measurement unit designed for high dynamic applications. It integrates low noise, high range inertial sensors with their proprietary VELOX™ high-speed processing technology, which ensures optimal performance without compromising on inertial data integrity. This unit is factory calibrated and conditioned to operate reliably across a wide temperature range, from -50°C to +85°C, and can withstand significant shock and vibration levels. Providing a high bandwidth of 600Hz, data rates up to 10 kHz, and low angle random walk (ARW) of 0.0017°/s/√Hz, it is well-suited for applications that demand accurate inertial data under dynamic conditions. The device supports multiple data formats and a high max baud rate of 7.5 Mbaud, making it flexible for various system integrations. Additionally, its robust but compact measuring features, 19 grams in weight and occupying a volume of 0.6 cubic inches, highlight its suitability for applications where space and weight are critical.Most popular related searches
Low noise, high speed, six-axis IMU.
The LandMark™005 IMU is Gladiator Technologies’ high speed, six-axis MEMS Inertial Measurement Unit (IMU) equipped with low noise sensors, VELOX™ high speed processing and user configurable firmware. Only 0.6 cubic inches, the LandMark™005 comes factory calibrated over the full temperature range, conditioned over environments.
0.6: Cubic Inches
0.0017°/s/√Hz: ARW
600Hz: Bandwidth
<29µs: Message Delay
0.075°/s: Bias Stability Over Temperature
10kHz: Data Rates
- Low Noise. High Speed.
The LandMark™005 IMU combines low noise, high range, inertial sensors and VELOX™ technology in a robust package built for performance in high dynamic applications.
- VELOX™ High Speed Processing
Gladiator Technologies’ cutting edge data processing suite enabling filtered digital output without sacrificing inertial performance.
- Factory Calibrated
Gladiator Inertial products are factory calibrated, modeled and conditioned over temperature, -50°C to +85°C, shock and vibration.
