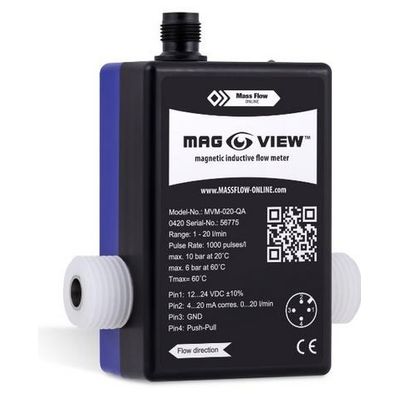

Mass Flow Online - Model Mag-View - MVM-002-QA -Magnetic Flow Meter
The MAG-VIEW series operate on the magnetic inductive principle. The complete absence of moving parts, its interference free operation and the insensitivity with contaminated liquids, makes this magnetic flow meter the perfect solution even in compact machines with cramped confines.Most popular related searches
magnetic flow meter
flow meter
electromagnetic flow meter
cooling water monitoring
exhaust gas cleaning
flow sensor
liquid flow metering
liquid flow meter
water monitoring
water chemical feed
Magnetic Flow Meter [0.1 .. 2 lpm, 4 .. 20 mA]
This magnetic flow meter is suitable to measure flows of water and other conductive liquids within a flow range of 0.1 .. 2 lpm.
- Makes liquid flows visible by
- Frequency output
- Analog output (4..20 mA)
- Blinking LED (green)
- No mechanical wear
- No moving parts
- Ease of mounting and operation
- Mounting in any position
- Free pipe cross section
- No additional pressure drop
- Fast response (<100 ms)
- Insensitive with contaminated liquids
- Ideal solution for interference free operation combined with a long-life cycle
- Can be used in areas where flow sensors with moving parts cannot be applied
- Wide independence to the inlet and outlet pipe creates the advantage to be able to install in compact machines with cramped confines
Measurement/control system:
- Flow range: 0.1 ...2/min
- Accuracy: ±0.7 % of reading ±0.3 % of range (incl. factory calibration certificate; test conditions: water 23°C)
- Repeatability: 1 %FS
- Max. flow rate: 2.5 l/min
- Temperature rating: Ambient temperature:-15..60°C Storage temperature: -15..60°C
- Operating pressure: 10 bar{a) (20 °Q, 8 bar(a) (40 °C), 6 bar(a) (60 °Q, 5 bar(a) (80 °C)
- Nominal diameter: DN3
- Flow/alarm indication: Green LED: flow proportional flashing
- Signal output starting from: -0.05 l/min
- Medium: Water and other conductive liquids (minimum conductivity of 20 uS/cm)
- Medium Temperature: ± -15.. 80 °C (not freezing)
- Rangeability: 1:20
- Response time (sensor): < 100 ms
Mechanical parts:
- Material (wetted parts):
- Housing: ABS
- In contact with fluid:
- Electrodes and ground rings: Stainless Steel 1.4404
- Process connections: PVDF
- Measuring pipe: PVDF
- O-Rings: EPDM
- Process connections: G3/8"BSP male thread
- Seals: EPDM
- Ingress protection: IP65
Electrical properties:
- Power supply: 12..24Vdc±10%
- Max. power consumption: Typical 1.1 W, max. 3.6 W
- Electrical protection measures: short-circuit proof, protected against polarity reversal
- Analog output: 4... 20mA
- Frequency output: Pulse rate / K-factor: 10000 pulses/I Resolution :0,1 ml/pulse Signal shape: Push-Pull
- Signal shape: Square wave signal, duty cycle 50:50 (Push-Pull)
- Signal current: Max. 100 m A
- Pin assignment: PIN1:+12...24VDC+10% PIN 2: Analog output 4..20mA PIN3:-GND PIN 4: Frequency output(Push-pull)
- Electrical connection: 4-pin-plugM12x1
The fields of application for this magnetic flow meter are diverse:
- Can be used in areas where flow sensors with moving parts (paddle wheel, turbine sensors) cannot be applied due to contaminated media
- Sensor is intended for continuously measuring of flow rates or for dosing / batching of electrically conductive liquids with a minimum of 20µS/cm
- Water distribution
- Chemical feed
- Measuring of cooling water, measuring of waste water
- Cleaning Industry: Dosing of detergents and other additives
- Agriculture: dosing of water, fertilizer, fungicides and pesticides, measuring of water and liquid feed supplements
- Exhaust Gas Cleaning: Dosing of AdBlue
