Prioma - Model 500 -Medical Bed

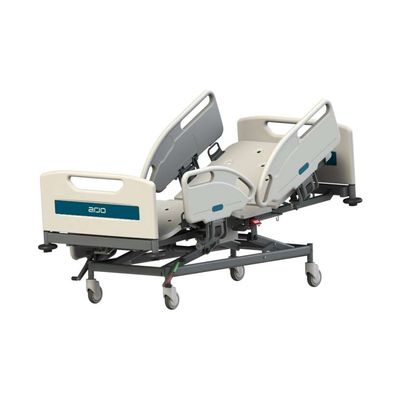

The Prioma Medical Bed 500 is a highly functional bed platform with full length split side rails and 125mm single central locking castors as standard. Designed for flexibility with a range of options available. Ease of use, functionality and serviceability are key features across the entire range and with a selection of options available, the Prioma range of medical beds provide flexibility to adapt to the varying needs of your healthcare environment. Model pictured with ¾ length split side rails.
Prioma Medical Bed 500
A range of optional features and accessories are available.
Standard Specifications
- Safe Working Load (SWL) 250 Kg
- Tente 125mm single central locking castors
- Linak actuators
- ABS removable deck panels
- Full length split side rails
- ACOM cabled hook over attendant control panel
- Retracting backrest
- Manual CPR backrest quick release
- Foot/calf elevation – manually operated
- Urine bag hooks and strap rail - both sides of bed
- Four accessory sockets
- Soft contoured mattress retainer handles
- Removable, lightweight head and foot panels
- Head and foot end rotating wall buffers
- Trendelenburg & reverse Trendelenburg tilt 14°
Basic Dimensions
Overall length:- 2190 mm
Overall length base extension extended:- 2480 mm
Linen rack extension:- 300 mm
In bed dimensions:- Inside panel to inside panel, inside mattress retainer to mattress retainer 2030 mm (l) x 860 mm (w)
Overall width:- 1010 mm
Deck height range:- Tente 125 mm single central locking castors 380 mm to 835 mm
Trendelenburg and reverse Trendelenburg tilt - electronic:- 0 to 14 degrees
Backrest angle adjustment - electronic:- 0 to 70 degrees
Knee break angle adjustment - electronic:- 0 to 35 degrees
Product Weight (approximate)
Includes side rails fitted:- 148 kg
Safe Working Load (SWL):- 250 kg
Maximum patient weight:- 185 kg
Electrical Data
Power in:- Switch mode operating voltage range 100V to 240V - 50/60Hz
Duty rating:- intermittent 10% max 2 min / 18 min
Electric Shock Protection:- Class 1 Type B
Liquid ingress protection:- IP54
Internally powered equipment - battery backup only:- battery backup only - 2x 12V series connected batteries, sealed chargeable lead/Acid Gel 1.2 amp hours
