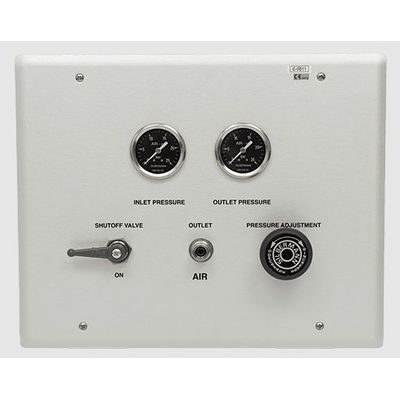

Silbermann - Medical Gas Control Panel
FromSilbermann
The SILBERMANN medical gas control panel supplies adjustable pressure, as required, to pneumatic-driven surgical tools in the operating theaters. Silbermann’s gas control panel is designed to meet the latest and most rigid American NFPA99 and European EN ISO 7396-1 requirements.
Most popular related searches
medical gas
medical gas distribution system
medical gas system
medical gas pipe
medical gas distribution
medical equipment
ISO 13485
surgery tool
medical system
surgical
- Compatible with Nitrogen or Industrial Air
- Easy, safe and reliable connection between the medical equipment and the medical gas distribution system
- Anodized Aluminum front with rounded edges for aesthetic appeal
- Manual shut-off valve
- Inlet & outlet pressure gauges
- DISS or NIST outlet connection
- A Knob to adjust outlet pressure
- Medical Gas System Standards:
- NFPA99, EN ISO 7396-1
- Silbermann’s Quality Management System:
- ISO 9001-2015
- ISO 13485-2016
- CE mark
- Panel: 3 mm anodized Aluminum plate
- Compatible with Nitrogen or Instrument Air
- Box: Galvanized steel case, powder coated Ral 9016 (White)
- Inlet Pressure Guage: 0 - 25 bars
- Adjusted Pressure: 0.5-16 bar.
- Flow Capacity:
- 70 m3/h @ 10 bar
- 90 m3/h @ 16 bar
