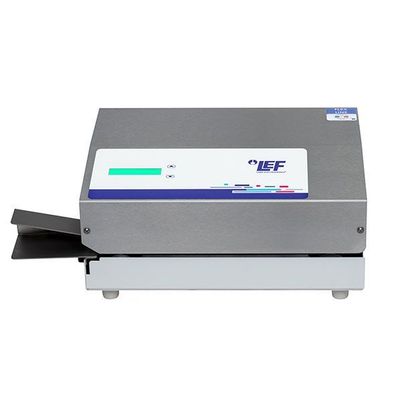

Flex Line - Model TS 46 / TS 46N -Medical Heat Sealer

A versatile and compact range; Start sensor; A powerful engine for a user-friendly sealer; A large adjustable pouch-guide.

Most popular related searches

Standards : CE / CEM / EN 868-5 / DIN 58953-7.
Sealing: 15 mm width / flat and full weld for better checking, unlimited sealing length.
Display: 1 line LCD (TS 46 / 46N), colour touch screen (TS 46T).
Temperature range: 20-230C° with a 2% regulation tolerance on the TS 46 / 46N, 1% on the TS 46T.
Multifunction intuitive menu (graphics, counters, informative messages, multilingual, alphanumeric keyboard…) on TS 46T.
Adjustable pouches guide (0-30 mm from edge).
Integrated digital maintenance notebook (TS 46T / TL).
Sealings counter with reset.
5 pre-set temperatures (TS 46T).
Seals all kinds of pouches (steam, Tyvek®, OE, alu, Ultra®,…).
Starts automatically when the set temperature is reached.
Environmentally responsible: automatic start and stop by photocell.
Safety: critical parameters control complying to ISO 11607-2 standard (temperature & pressure) on TS 46N / T.
Automatic stop if critical parameters exceed limits (TS 46N / T)
Calibration certificate (COFRAC att.) on the TS 46T range.

Stainless steel front support tray (700 x 300 x 60 mm).
Roll conveyor support tray (800 x 300 x 60 mm).
Automatic self-test for critical parameters ISO 11067-2 with control receipt editing (AUTO-TEST).
Sealings logs backup for ISO 11607-2 (USB)

Technical Characteristics:
