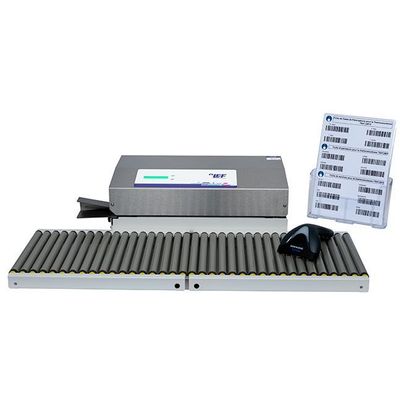

Print Line - Model TS 47 / TS 47N -Medical Heat Sealer

SHARE

Amazingly easy handling; Provided with a bar code editing software and SCANNER; Perfectly clear 1 line printing; Fits all types of pouches (steam, Tyvek®, Ultra®, OE, alu…); Protection of the printing mechanism; 304L stainless steel hood.

Most popular related searches
medical heat sealer
  • Standards : CE / CEM / EN 868-5 / DIN 58953-7 for all the range, ISO 11607-2 (TS 47N / 47T).
  • Sealing: 15 mm width / flat and full weld for better checking, unlimited sealing length.
  • Display: 1 line LCD (TS 47 / 47N), colour touch screen (TS 47T).
  • Temperature: 20-230C° with a 2% regulation tolerance on the TS 47 / 47N, 1% on the TS 47T.
  • USB output (TS 47T).
  • Software for personalized barcode editing.
  • Barcode scanner (TS 47T).
  • Multifunction intuitive menu (graphics, counters, informative messages, multilingual, alphanumeric keyboard…) on TS 47T.
  • Adjustable pouches guide (0-30 mm from edge).
  • Integrated digital maintenance notebook (TS 47T).
  • 5 pre-set temperatures (TS 47T).
  • Seals every kind of pouches (steam, Tyvek®, OE, alu, Ultra®,…).
  • Starts automatically when the set temperature is reached.
  • Environmentally responsible: automatic start and stop by photocell.
  • Safety: critical parameters control complying to ISO 11607-2 standard (temperature & pressure) on TS 47N / 47T.
  • Automatic stop if critical parameters exceed limits (TS 47N / 47T)
  • Calibration certificate (COFRAC att.) on the TS 47T.

  • Stainless steel front support tray (700 x 300 x 60 mm).
  • Roll conveyor support tray (800 x 300 x 60 mm).
  • Automatic self-test for critical parameters ISO 11067-2 with control receipt editing (AUTO-TEST).
  • Sealings logs backup for ISO 11607-2 (USB)
