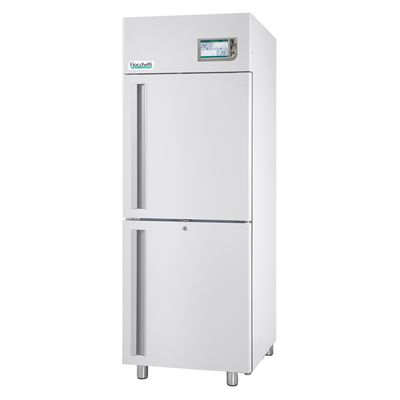

Fiocchetti - Model PLASMA-SUPERARTIC 2T Series -Medical Refrigerator and Freezer
The PLASMA-SUPERARTIC 2T 700 TOUCH is a specialized medical refrigeration unit designed for simultaneous storage of blood and plasma. This device features two independent compartments operating within a temperature range of +2/+6°C for blood and -20/-40°C for plasma. It incorporates a 7-inch full-touch electronic controller, ensuring precise temperature regulation with 0.1°C resolution and ±0.3°C accuracy. It records temperature and alarms, and it displays real-time graphs and energy consumption. The unit is equipped with two solid doors, professional ventilated refrigeration, and adaptive automatic defrosting. A microprocessor controller manages data and alarm limits. The device includes options for connectivity via a built-in Web Server for LAN and MODBUS TCP/IP network connections. Upgradable features include GSM, Wi-Fi, and cloud-based monitoring systems. The interior, made of plasticized atoxic white steel or Aisi 304 stainless steel, is rounded for easy cleaning and includes full LED lighting. The unit is designed with energy efficiency, safety features, and detailed alarm recording for reliable operation in labs and transfusion departments.
Large volume combined fridge-freezer, with freezer compartment 'till -40°C, certified as a medical device, for storing blood and plasma, in separate compartments but in a single unit
- +2/+6°C | -20/-40°C : Temperature range
- 593 lt (20.94 cu ft) : Capacity
- 72 x 84 x 203 cm : External dimensions (WxDxH)
- TOUCH : Electronic Controller
Combined refrigerator + freezer, certified for storing plasma, with two solid doors and double cooling unit, Touch screen display managing both chambers and data recording.
The medical device rated, combined refrigerator/freezers PLASMA-SUPERARTIC 2T series, thanks to the two completely independent compartments, allow the simultaneous storage of blood at +4 °C and plasma 'till -40°C.
Two solid doors and the customizable interior fittings enhance at best the preservation of material.PLASMA-SUPERARTIC 2T medical devices comply with the international standards in force and, thanks to the different capacities offered and the possibility of customizing the internal fittings, they adapt to the needs of small and large laboratories and transfusion departments.
The PLASMA-SUPERARTIC 2T series includes Touch controller with graph and independent DMLP Touch board with backup battery for data recording and alarms even in the absence of power, external contacts for their remote control and RJ45 port, product temperature simulation probe and electric lock for access control. Fiocchetti's plasma freezers are Medical Devices certified, complying with Directive 93/42/EEC (class IIa) and its amendment 2007/47/EEC, and are registered in the MD Repertoire of the Italian Ministry of Health. They also comply with DIN 13277 and 2011/65/CE (RoHS).STRUCTURE AND REFRIGERATION
- Inner dimensions: 60 x 68 x 70 / 60 x 68 x 74 cm
- Nominal capacity: 350+350 lt (12,36 + 12,36 cu ft)
- Net capacity : 260+230 lt (9,19 + 8,13 cu ft)
- Insulation type: Insulation in PUF injected at very high density (43 kg/m3), without any CFC and with water-foam based injection.
- Insulation thickness: 60 mm
- Structure: Monocoque type, made of plasticized, atoxic white steel interior/exterior, coated with a special antibacterial-type film, or in inner 18/10 Aisi 304 stainless steel. Inner bottom rounded corners.
- Nr 4 height adjustable feet included to grant maximum stability
- Interior lightning: Full LED, all lenght of inner chamber, with adjustable brightness
- Refrigeration type: Professional ventilated
- Defrost type: Automatic, adaptive, with collection of condensate water
- Power consumption reduction with function Night & Day
