Promed - Model A500 -Medical Waste Sterilization System

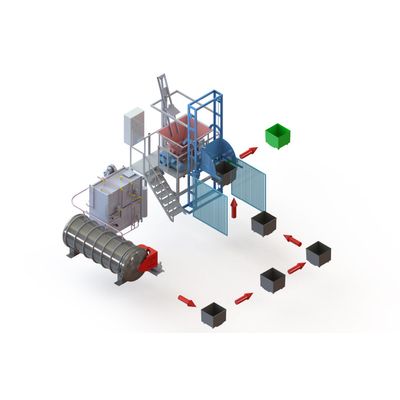

The Promed A500 is a medical waste sterilization system designed for efficient use in large hospitals and industrial sterilization facilities. Built to comply with EU Directives and certified by TUV Austria, it operates at a capacity of 500 kg/h, integrating multiple stages of sterilization including shredding, microwave treatment, and steam injection. The system features an anti-blocking shredder capable of processing hard materials such as surgical tools and ceramics. It utilizes a combination of saturated steam and precise temperature control, reaching between 134°C and 138°C, to achieve a decontamination level reduced by a factor of 8 Log 10. The sequence ends with cooling and draining processes that ensure the sterile byproducts are safely disposed of into sewage systems. The design enhances throughput with simultaneous shredding and sterilization, optimizing large-scale medical waste management.- Simultaneous Shredding and Sterilization process for higher capacity output
- Automatic loading and unloading ramp for the autoclave carts
- Automatic elevator system for easy loading
- Pressure container built of high-quality Stainless Steel
- Sophisticated automation control system with advanced reporting and monitoring software
- Online access via the internet for supervision and troubleshooting
- Fully automatic operation- no need for any operator intervention
- Low fuel and electrical consumption for integrated steam boilers equipped with state of the art steam regeneration system
We are Design and production certified by TUV Austria. Produced according to EU Directives PED (2014/68/EU) 2006/42/EC, 2014/30/EU & EU Norms EN285
Technical Features: Value
Size (L x W x H) (mm): 3500 x 2250 x 2250
Weight (Kg): 4600
Air Pressure (Bar max): 8
Electrical connection required (Kw): 35*
Working Characteristics: Value
Sterilizing Capacity (Kg/ Hour): 3500**
Process Volume Capacity (Lt.): 75
Average Waste Density (Kg/m3): 100 – 150
Average Cycle Time (Min.): 45
Maximum Steam Flow (Kg/Hour): 670
Sterilization Efficiency (SAL): 8 Log10
Consumption / Cycle: Value
Steam (Kg): 45
Electricity (Kw): 11**
Water (Lt): None***
Special Consumables: None
* P50 – P100 – P150 includes built in electrical steam boiler
** Electrical consumption of the sterilizer only
*** Water consumption of integrated steam boiler: 7 – 12 Lt./ Cycle
All Systems can be customized to customer specification
