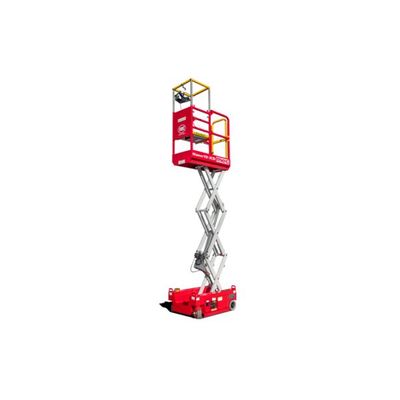

MEC - Model NANO10-XD -Micro Class Slab Scissor Lifts

• All-Electric Lift, Steer & Drive: No Hydraulic Oil
• Pull-Down Xtra-Deck: Gives additional 20 in. (50 cm) height for 1 person
• Ladderless Ground-Level entry : Full Height and Swing Gate

• 9.8 ft Platform Height
• 30 in. Machine Width
• 45.5 in. Machine Length
• 500 lbs. Platform Capacity
• 1,235 lbs. Machine Weight

Work Area

• Xtra-Deck Additional 20-inch height Platform Patent Pending
• Standard Swing Gate
• Ground to Platform Step Height – No Ladder
• Lanyard Attachment
• 5v USB Charging Port at the Platform Control Box

Performance

• All-Electric Drive Lift/Steer/Drive
• Fully Proportional Drive and Lift Controls
• Up To 25% Gradeability

Power

• 24v DC, 63 Ah Lithium-Ion Battery Pack (Maintenance Free)
• Battery Charge Indicator

Serviceability

• Lubrication-Free Scissor Bearings
• Easy Maintenance Access to Mechanical and Electrical Components
• Logically Grouped Components and Numbered Wiring for Easy Reference

Safety

• Xtra-Deck Solution to Standing on the Midrails Hazard
• Lift Control Orientation Designed to Mitigate Overhead Entrapment
• Emergency Shut-Off at Platform and & Lower Controls
• Non-Skid Metal Deck Construction
• Descent Alarm
• Drive Speed Interlock
• Scissor Maintenance Lock
• Multi-Axis Tilt Sensor
• Multiple Disc Brakes
• Automatic Parking Brake

Other Features

• Removable Upper Controls
• Voltage-Compensating Fully-Automatic Battery Charger
• Hour Meter
• Machine Tie Downs
• Non-Marking Tires
• All Motion Alarm
• Fork Lift Pockets
• Flashing Beacon (Continuous)

• All-Electric Lift, Steer & Drive (No Hydraulic Oil)
• Pull-Down Xtra-Deck give additional 20 in. (50 cm) Height for 1 Person
• Lithium-Ion Maintenance-Free Batteries Standard
• Food and Pharmaceutical, Data Centers, and Hospitality Applications
• Ladderless Ground-level entry with Full Height and Swing Gate
• Fully proportional Drive and Lift Controls
• 63 in. (1.6 m) Overall Height – No Folding Rails to Get Thru Doorways
• Lightweight Design (1,235 lbs./560 kg) Allows Usage on Restricted Floor Loading Applications and in all Elevators

• Cold Weather Package
• Upper Control Box Cover
• Proactive Platform Safety System® (PPSS)
• Second Year Extended Warranty
