Micro CT Phantom Kit
This Micro CT phantom kit allows for the assessment of Micro CT systems and in Micro CT research. The kit is a standard size of 32mm, but can be scaled up or down to suit requirements. The phantoms in the kit can also be purchased individually.
Most popular related searches

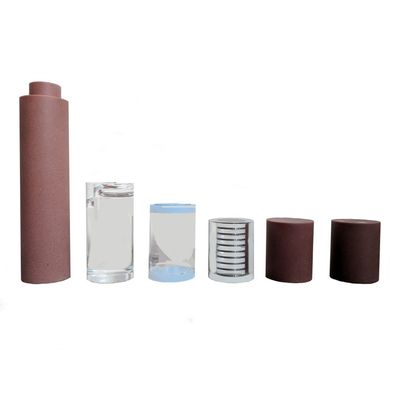

The Micro CT phantom kit includes:
- CT dose phantom
- Water phantom
- Point Spread Function PSF phantom
- Multi layer phantom
- HA phantom
- Low Contrast phantom
Specification:
- The standard diameter is 32mm but can modified upon request
- The CT Dose phantom comes with a water equivalent background and fits a standard pencil ionisation chamber in the central bore
- The Water phantom comes filled with distilled water
- Point Spread Function (PSF) and Modulation Transfer Function (MTF) can be evaluated using the PSF phantom. It contains 2 wires, one in the center and one offset to allow evaluation of the image quality in the periphery
- The Multi layer phantom (Defrise) containing high density disks separated by layers of 3mm low density disks can be used for artefact evaluation in reconstruction algorithms
- The HA phantom, replicating high density bone, contains five cylindrical inserts of varying densities of CaHA (calcium hydroxyapatite). The background is water
- The low contrast phantom replicates low density bone, with a water background
Comes with:
- Detailed user manual
- Robust carrying case for easy transport
