JOST - Multi Dimensional Compaction Table Vector

Due to these complexities, the compaction table is the centerpiece of a lost-foam system. The use of a normal vibrating table doesn’t work here because it can only produce vertical vibration. To flawlessly fill horizontal cavities you need a defined, horizontal vibration motion to get the sand to move forward into the cavity.

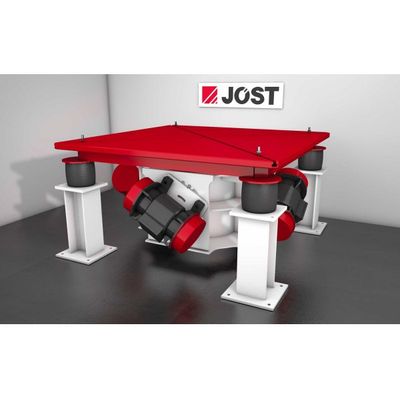

To solve this problem, JÖST developed the special vibration table – the Multidimensional Compaction Table. Using multiple real-time regulated unbalance motors, this table is able to vary the vector of the vibration on the X, Y or Z axis with independently selected angle, frequency and swing in order to achieve optimal fill and density in the mold. It also guarantees that the system can ramp up from zero to the desired frequency without vibration or self-resonance.

Another great advantage of the VECTOR is the resonance-free startup to the desired operating speed as well as resonance-free runout.

Unlike conventional vibration tables, the VECTOR starts and stops without the common “shaking” during startup and runout, which can often lead to already dense molds loosening up again and reducing the quality of the cast. This feature also eliminates the risk of the model body slipping in the mold before density is reached.

• Dimensions between 1000 x 1000 - 5000 x 5000 [mm] possible
• Startup to target frequency: vibration free / resonance free
• Vibration frequency: electronically adjustable
• Vibration vector in X-direction: electronically adjustable
• Vibration vector in Y-direction: electronically adjustable
• Vibration vector in Z-direction: electronically adjustable
