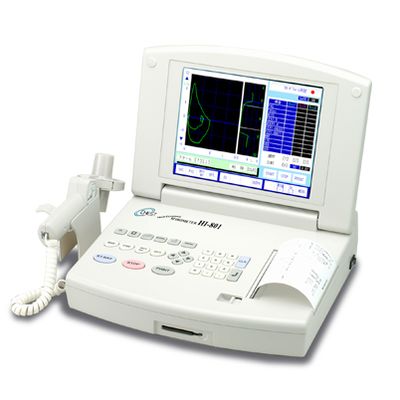

Model HI-801 - Multi-Functional Spirometer
ATS standard. Large storage volume of measured data with CF memory card. Clear full color LCD. Convenient software.
Flow
Detection: Lilly type pneumotach sensor(Bi-directional)
Range: +/- 0.05 to +/- 14.0L/s
Resolution: 0.01L/s
Accuracy: +/- 5% or +/- 0.2L/s, whichever is greater
Volume
Detection: Flow integration
Range: +/- 0.01 to +/- 10.0L/s
Resolution: 0.01L/s
Accuracy: +/- 3% or +/- 0.050L/s, whichever is greater
LCD
Display: 10.4 inch TFT color display
Dot pitch: 0.11 x 0.33mm
Dots: (640 x RGB) x 480
Printer
Printer: Built-in thermal printer
Letter/paper width: 104mm/112mm
Maximum printing speed: 45mm/s
Data storage: More than 1,000 patients in CF memory card
Interface: USB, RS-232C
Power requirement: AC100V - 240V, 50/60Hz
Dimensions: 350(W) x 290(D) x 100(H) mm
Weight: 4.5kg
