Spectral Evolution

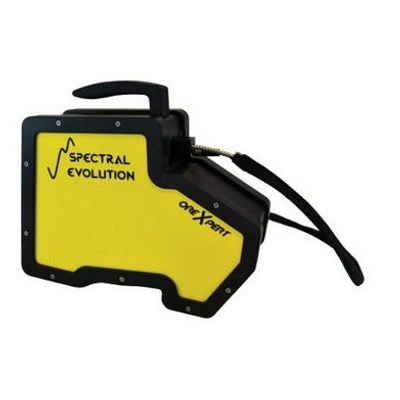

Spectral EvolutionModel oreXpert -NIR Field Spectrometer

SHARE

The oreXpert NIR field spectrometer is specifically designed to provide the highest resolution available for the harsh requirements of field use. Its high resolution allows the distinction of features that help with unmixing and identification of trace minerals. It features ultra high resolution and very stable performance with three high-density thermoelectrically cooled photodiode arrays.

Most popular related searches
  • 350-2500 nm spectral range
  • 100% diode array optics with no moving parts
  • Removable/replaceable fiberoptic cable
  • Rugged anodized aluminum construction
  • Auto exposure & auto dark shutter
  • Wireless connectivity
  • High signal-to-noise ratio for better reflectance values
  • Fast start-up and use, with no optimization step to start scanning or between scans
  • Collect target data with a single click
  • Lightweight lithium-ion battery for power in the field
  • Mapping alteration zones
  • Vectoring to mineralization
  • Open-pit mapping
  • Analyzing outcrops, hand samples, and RC chips
  • Quickly analyzing drill core samples
  • Soil degradation, mapping, & monitoring
