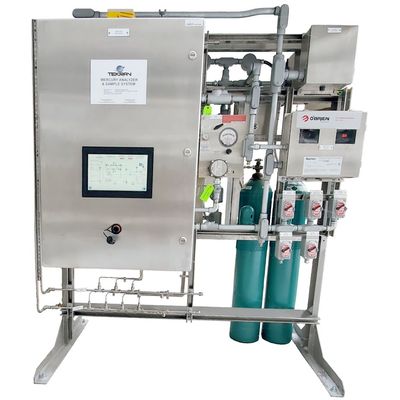

Tekran - Model NG-80 -Online Natural Gas Hg Monitor

• Full compliance with ASTM-6350 and ISO-6978
• Analytical cartridge never exposed to sample gas for clean operation
• Multiple automated QA routines validate method performance
• Range 1 ng/m³ to 2000 ug/m³
• Network enabled for remote operation and data retrieval
• Easy servicing of optical components
• Class 1 Div 2 cabinet for use in hazardous environments
• ASTM-6350 and ISO-6978 method compliant
• Dual-bed gold sample trap design avoids analytical gold cartridge exposure to complex sample gas
• Multiple automated QA routines validate method performance
• Range of 1 ng/m3 to 2 mg/m3
• Network enabled for remote operation

For more information and a full listing of specifications and uses, please Download the Fact Sheet.

• Instrument touch screen interface does not require PC for operation
• Local data storage, front panel USB port, and remote access for data retrieval
• Additional functionality via optional s/w plugins (i.e. valve multiplexer)
• Digital lamp and detector electronics w/ remote control and display

• Low dead-volume valve assemblies with inert PEEK surfaces
• Integrated sample and breakthrough trap assessment with option for single or combined heating to provide measurement and QA assessment options
• Constant power heater control insures consistent temperature over heater life
• Unique design isolates analytical cartridge from complex natural gas matrix; the cartridge is only exposed to carrier gas for optimal performance and robustness
• Integrated permeation source allows assessment of trapping efficiency, matrix effects, and routine automated calibration

• Instrument and enclosure design allows free-flowing inert purge gas exchange throughout instrument to improve overall safety rating
• Simple access to serviceable components like cuvette and gold cartridges

• Analyte: Total gaseous mercury in natural gas
• Principle: Dual-bed gold pre-concentration with CVAFS detection.
• Range: 1.0 ng/m3 to 2.0 mg/m3
• Sampling Cycle: 2.0 – 60 min
• Sampling: Alternating sample collection and analysis cycles
• Data Outputs: Network (1), USB Device (1), USB Host (3), RS-485 (2),
• RS-232 (1), Analog Chart (2)
• Sample Flow: 0.1 - 0.5 L/min with 5 psi (max) inlet pressure
• Flow Totalization: Precision mass flow controller (MFC)
• Carrier Gas: Argon or Nitrogen
• Consumption: ~125 L/day (full size tank lasts 2 to 3 months)
• Carrier Setpoint: Precision mass flow controller provides dynamic control of carrier
• flow during each desorption cycle. MFC delivers superior flow
• stability and accuracy.
• Calibration: Automatic multi-point calibration using internal permeation source.
• Manual injection port also provided
• Physical: Self-contained with maximum internal and external case venting.
• 19” rack mountable (4U height)
