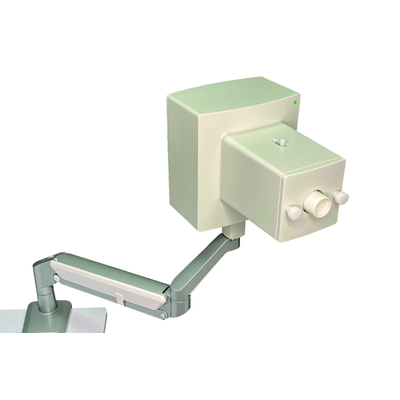

Piston - Model PDD-301/so -Oscillometer

SHARE

The Forced Oscillation Technique (FOT) offers a modern and reliable but economical method for the impedance measurement of respiratory system. During test the patient is only asked to breath normally and no respiratory manoeuvre is needed. Since the test requires minimum co-operation from the patients, the FOT device is and uniquely applicable in paediatric pulmonology

Most popular related searches
pulmonary function testing
patient circuit
pulmonary function
pulmonary testing
respiratory test
pulmonology
pediatry
patient size
patient testing

  • Measurement of the components of the airway impedance at different frequencies
  • Determination of the resonance frequency of the airways
  • Average calculation of Reproducible Impedance Spectra
  • Model evaluation of Impedance Spectra
  • Calculation of Resistance / Elastance / Inertance of the respiratory system
  • Random induced frequencies
  • Sequential induced frequencies

  • Respiratory impedance measurement
  • FVC measurement
  • IVC measurement
  • MVV measurement

  • Flow meter: Lilly type pneumotachometer with screen
  • Flow range: ±15 l/s
  • Accuracy: ±2% or 50 ml, whichever is greater
  • Dead space: 36 ml
  • Resistance: 60 Pa/l/s @ 15 l/s
  • Induced frequency range: 4 Hz - 48 Hz
  • Induced pressure wave: max. 0,2 kPa
  • Induced power: max. 50W
  • Size without patient circuit: Height: 300 mm
    • Wide: 300 mm
    • Deep: 150 mm
  • Weight: 7,2 kg
  • Power supply: 90 ÷ 260 VAC 50/60 Hz
  • Power consumption: 75 VA
