Argen Corporation

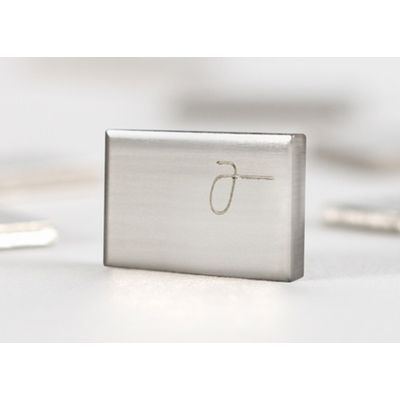

Argen - Palladium Silver Alloys
Palladium silver alloys possess excellent strength and biocompatibility and have become the traditional economic solution for ceramic veneering materials.
Most popular related searches
- Color : WHITE
- Type : 4
- ADA Class : NOBLE (N)
Processing
- Investment : Phosphate Bonded
- Crucible : Ceramic
- Degassing Temp C : 650-950
- Oxidation Procedure : Hold 5 Min, Remove Oxide, No Vacuum
- Solder & Laser Wires
- PreSolder : W, WSF
- PostSolder : LO, 500
- Laser Wire : LWL58
Physical Properties
- VHN After Firing : 240
- VHN Soft
- VHN Hard : 290
- Proof Stress Soft MPa : 575
- Proof Stress Hard MPa : 681
- Tensile Strength Soft MPa : 850
- Tensile Strength Hard MPa : 902
- Elongation Soft : 18
- Elongation Hard : 10
- Elastic Modulus GPa : 130
- Composition
- Silver (Ag) : 21.5
- Gold (Au) : 15.0
- Indium (In) : 6.0
- Palladium (Pd) : 52.3
- Tin (Sn) : 4.0
- Ruthenium (Ru) : 0.2
- Gallium (Ga) : 1.0
Thermal Properties
- Melting Range C : 1160-1290
- Casting Temp C : 1400
- Density g/cc : 11.6
- Expansion at 500C : 14.5
- Expansion at 600C : 14.7
- Burnout Temp C : 815
- Investment : Phosphate Bonded
- Crucible : Ceramic
- Degassing Temp C : 650-950
- Oxidation Procedure : Hold 5 Min, Remove Oxide, No Vacuum
