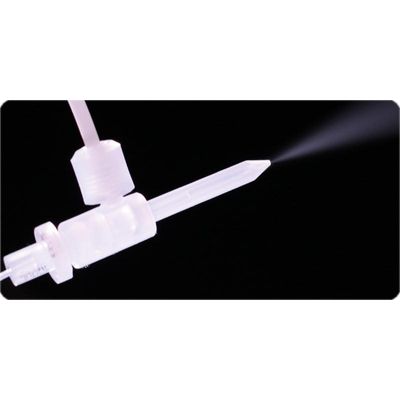

Teledyne CETAC - Model C-Flow - PFA Concentric Nebulizer for the Aridus II
The C-Flow is a molded, fixed-capillary style PFA (perfluoroalkoxy) concentric nebulizer for the introduction of low-volume (lessthan 1 mL) samples to the Teledyne CETAC AridusII Desolvating Nebulizer System. The AridusII is used for signal enhancement / interference reduction with ICP-MS.
- Sample Uptake Rates : 50µL/min, | 100µL/min | 200µL/min
- Nebulizer Gas Flow Range : 0.8 to 1.2 L/min
- Nebulizer End (Outer Diameter) : 6 mm
- Nebulizer Overall Length : 820 mm (50, 200 µL/min versions)
- 1150 mm (100 µL/min version)
- Nebulizer Uptake Line Length : 745 mm (50, 200 L/min versions)
- 1075 mm (100 µL/min version)
- Warranty : 12 month limited
Inert Construction: The inert, fluoropolymer construction of the C-Flow PFA Nebulizer allows introduction of all acids (including hydrofluoric acid), alkalis, and organic solvents.
Standard Size: The C-Flow features a standard 6 mm diameter tip for easy installation to the AridusII heated PFA spray chamber. The nebulizer gas supply is from the host ICP-MS instrument, with 4 mm diameter tubing attaching directly to the C-Flow nebulizer side gas inlet port.
Optimized for the Aridus 3 / ASX-112FR: C-Flow PFA nebulizers for the Aridus3 are factory adjusted for best performance in the heated PFA spray chamber and feature a built-in autosampler probe for connection to the ASX-112FR MicroAutosampler.
Low-Flow Rates Available: The C-Flow PFA Nebulizer for the Aridus3 is available in three self-aspiration flow rates of 50 ml/min, 100 mL/min, and 200 mL/min. The 100 mL/min nebulizer is included in the Aridus 3 One Year Consumable Kit.
