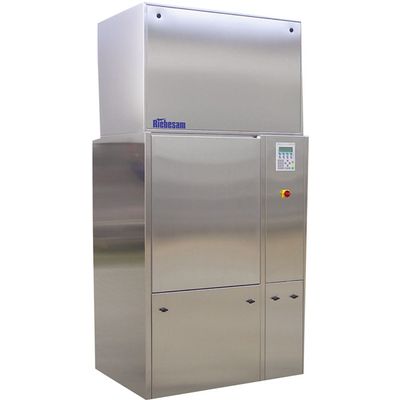

Riebesam - Model 26-PH Series -Pharma Grade Washers

• Washing chamber (without deadlegs) electrically polished (mirror polished) with radiused corners
• Diaphragm valves fitted with TriClamp connections for WFI (Water for Injection) and WPU (Purified water)
• Pharmaceutical grade recirculation pump with orbitally welded piping and TriClamp connections
• Rear view with orbitally welded piping and diaphragm valve

Execution options:

• Double door washer with swivelling hatch doors
• Double door washer with vertical sliding doors
• Single door washer with swivelling hatch door
• Single door washer with vertical sliding door

All-in-One-Design:

• Optimized  footprint
• Detergents, all technical components and connections to all utilities are placed inside the external panel of the washer and are easily accessable through a service door.

This enables the washers to be placed directly side by side and  guarantees for optimum adoption into clean room concepts.
Riebesam`s all modular design concept guarantees for washers custom manufactured  to your needs and specifications (URS).

• Accurate design according to cGMP, GAMP and FDA guidelines
• 316L stainless steel (1.4404 / 1.4435)
• Deadleg free chamber design with radiused corners and electrically polished (mirror polished) washing chamber
• Pharmaceutical grade self draining recirculation pumps (e.g. Hilge)
• Final Rinse options
• Diaphragm valves (e.g. Gemü, Sisto)
• Orbitally welded piping with TriClamp or aseptic sterile flanges (e.g. Südmo, Neumo)
• Non stainless steel parts FDA approved
• High performance drying unit with H13 filter as last element in the air flow
• State-of-the-art SPS controllers (e.g. Siemens S7)
• Data acquisition according to 21CFR Part 11 guidelines
• Extensive documentation and IQ / OQ support including FAT (Factory Acceptance Test) and SAT (Site Acceptance Test)
• Quality “Made in Germany
