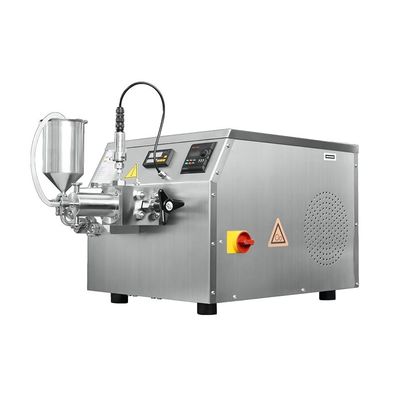

Donghua - Pharmaceutical Homogenizer
FromShanghai Donghua
The Donghua Pharmaceutical Homogenizer is designed for fine-tuning fluid emulsification and dispersion processes. The machine utilizes a plunger pump mechanism to exert precise pressure on substances, propelling them through an adjustable valve block. The high-pressure system ensures the formation of supersonic flow velocities as materials are forced through the dispersing unit's narrow gaps. This rapid motion facilitates an efficient drop in pressure, ideal for ultrafine liquid-liquid emulsification or solid-liquid dispersion. The GYB series homogenizer supports these processes with components made from durable materials, boasting high surface hardness levels of up to HY1000. This ensures resistance to wear and corrosion over time. Donghua's offering also includes a colloid mill for ultra-fine grinding, ensuring uniform particle size in processed materials.Most popular related searches
Max. nominal pressure : 2000 bar
Max. operation pressure : 1800 bar
Feed size : < 500 μm
Dimensions : 440*410*800MM（W*H*L）
Product viscosity : < 2000 CP
Capacity : 25 mL-13 L/H
Feed temperature : < 90 ℃
Weight : 110 kg
- Unique solution of two-stage homogenizing valve, crafted from ceramic or alloy.
- A digital pressure gauge which is clearly viewable and an electronic safeguard system have been combined, offering simple observation and protection.
- Compact design, suitable for lab bench.
- Circulate cooling device with material
- Modular design, simple to operate, and requires little maintenance.
The plunger pump sucks the material and applies pressure to it, causing it to flow into the valve block where the pressure can be adjusted. As the material passes through the limited width gap of the designated area, it is met with one of the valve parts at a high speed and generates a momentary drop in pressure.
