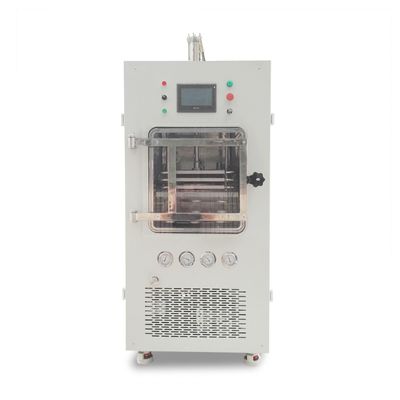

Hjchem - Pharmaceutical Lyophilizer Freeze Dryer for Pilot Plant

1. Tray area: 0.2~1.05㎡

2. Cold trap temperature: -70℃

3. Vacuum Degree: <5Pa, no load

4. Handling capacity: 3kg ~16kg/batch

5. Heating method: electrical heating and others heating method.

Our pilot freeze dryers especially simplify the operation of small freeze-drying machine, prevent the pollution of the material, and control the moisture sublimation of the material .

The series have shelf cooling and heating, can be programmed, and can view the freeze-drying curve. It is very convenient for users to observe the freeze-drying process of the material.

1. In-situ pre-freeze drying, one-button start operation.

2. Temperature is adjustable, vacuum is adjustable, production process is controllable.

3. Equip with an inflation valve, it can be filled with dry inert gas.

4. Heat transfer oil heating, high temperature control accuracy, tray temperature difference is ≤1℃, uniform drying effect.

5. The drying room adopts high ligh transmission, colorless and transparent plexiglass door, which can be cleaned to observe the change process of materials during operation.

6. PLC control system, touch screen, display drying curve and USB data storage interface. It can store multiple programs, each program can be set to 36 segments, program parameters can be modified during operation, and vacuum drying curves and data can be recorded and exported.
