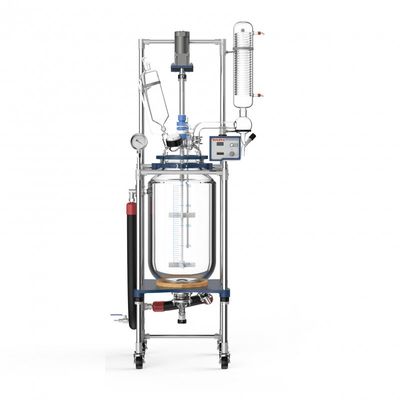

Innova - Pilot-scale Glass Reactor

Speed-regulation glass reactors are mainly used for synthetic reaction, distillation and concentration of different types of materials. The reactor can be pumped to a negative pressure state according to some experimental requirements. A constant pressure funnel or an adjusting valve on the feeding bottle allows you to add material to the vessel at a uniform and controlled speed. Condenser helps to recover some materials distillated during reaction.

• High borosilicate glass has good physical and chemical properties.
• Brushless DC motor for stable performance and long life time.
• Wide working temperature range:-80? to 200?.

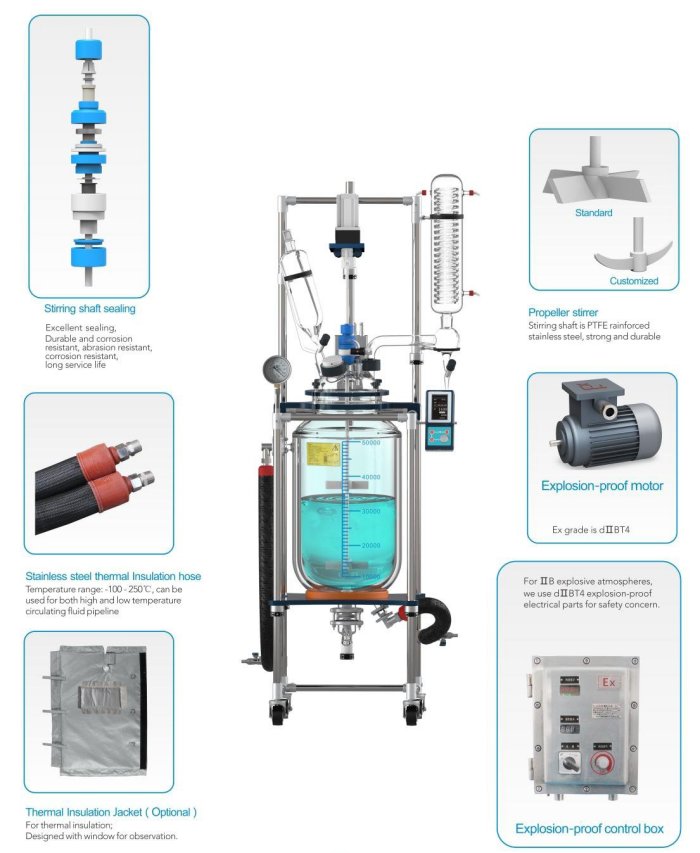

• Stirring shaft—Excellent sealing
• It can work under normal pressure and negative pressure, its vacuum degree can reach to 0.095MPa.
• The vessel can withstand the pressure range from -0.1MPa to 0MPa.
• PTFE and FV rubber material cock or discharge valve, Sealing together with PTFE covered O ring.
• Hose connection
