Fiberscope Anaconda - Pipe Sewer Camera

The ANACONDA HD Pipe Camera is one of the most affordable and versatile pipe inspection systems on the market today. It`s great for inspection areas, where customers need to inspect both straight down the line and sideways to inspect the side walls. The pipe camera features a modular design and can be supplied with either a pan-and-tilt or dual-view camera head, both of which are well-suited for inspecting sewers, drains, ducts, manholes, culverts, wells, and tanks. These will give you the best image quality at a reasonable price.

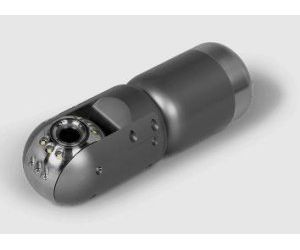

The pan-and-tilt function of the camera head means the head will pan side to side, at least 80° in each direction, to better view the side walls or around corners, and you can also rotate the camera head in a full 360° circle, enabling you to fully survey the entire surface of the inspection area. The high-resolution color 1/3" CMOS sensor is protected by a durable, scratch-proof, sapphire lens and aluminum and stainless steel construction, which is IP68 waterproof. The 6 white LEDs are great at illuminating large-diameter areas and providing consistent light dispersion over the entire surface. There is also a built-in 512Hz sonde to locate the camera head underground. Camera heads are also interchangeable, which is great for areas that require spare parts or backup units due to damage or contamination.

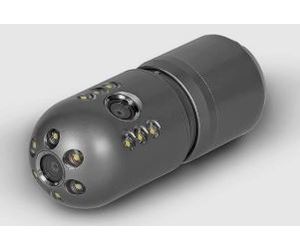

The dual view camera head is smaller and has a built-in frontal axial and a side view camera which pans around in a 360-degree circle to view and capture every detail of the inspection area in HD resolution. The camera head is waterproof and has 6 super bright LED lights around the straight view camera and an additional 6 super bright LEDs around the side view camera, to provide consistent illumination. The pan feature is controlled through an easy-to-use control panel, which switches the camera signal, rotates the camera head, and controls the direction of the rotation, to ensure that you can fully inspect the inner side walls for damage, cracks or weld joints.

Depending on the application the ANACONDA HD Pipe Camera can be supplied either with a push rod or a flexible drop cable for downhole inspections.

The fiberglass push cable is waterproof, and available in either 60 meters (197`) or 120 meters (394`) lengths built onto a standalone steel reel, with a built-in on-screen meter/footage counter, with controls, and a locking mechanism.

The winch with the soft drop cable comes with a meter/footage counter, mechanical lock and an extension arm. The standard length is 110 meters (360 feet).

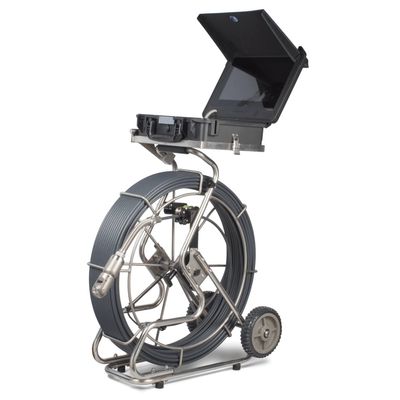

The control box is weatherproof and has a protective sunshield over an 13" color HD IPS LSD monitor. Pre-installed options include video and image capture directly to a USB memory stick, a WiFi keyboard to add text to files, a microphone, and a rechargeable battery for portable use. Switching between the camera signals is controlled via a simple dial, and the image can be switched during live video recording as well.

A centering bracket/skid is included in the set to ensure that the camera is sitting above ground and has room to pan or tilt.

This system is a portable, compact device that runs on a rechargeable battery, but can be supplied by extension cables or a generator.

ANACONDA Pipe Camera is a great viewing solution that combines precision, portability, ease of use, and breakthrough affordability.

• 3"-20" pipes
• Up to 394ft. (120m)
• Vertical and horizontal
• Direct and sideways

• 13" HD LCD IPS Color Display
• 1280x720 Resolution
• Image / Video capture
• On-screen Footage Counter

Full Specifications

• Size of the screen: 13`` HD LCD IPS
• Display Resolution: 1280x720, 16:9
• Image / Video capture
• On-screen meter/footage counter
• USB port for storage
• WiFi Keyboard
• Rechargeable Li-ion battery
• Working time: 8 Hrs

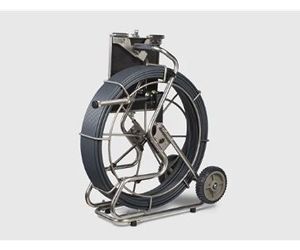

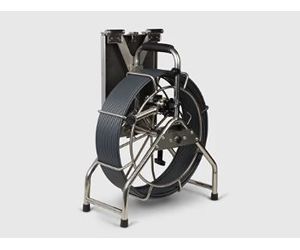

Mid and Large Reels

• Industrial Grade Steel Frame
• Fiberglass push rod cable
• Footage counter with "feet/meter" switch
• Push Cable diameter ø7mm / ø11mm
• Push Cable Length: 60m (196.8ft) / 120m (393.7ft)
• Mechanical brake
• Reel dimensions: 51x25x64cm / 70x28x84cm
• Centering Skid
• Optional Roller Skid for large diameter pipes

Downhole Reel

• Cable diameter: 6.5mm
• Working length: 110m (360`)
• Extension arm and digital meter/footage counter
• Mechanical brake
• Centering Skid

• Control Box
• User`s manual
• Skid
• Battery Charger
• USB Flash drive
• Patch Cables
• Earbuds
• Keyboard
• Reel with Cable
• Camera Head
