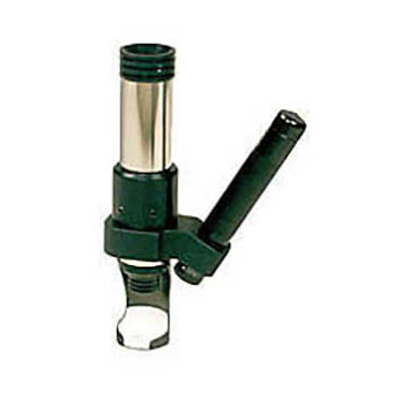

Newage - Model Brinell 35-450 - Pocket Optical Scope System
Ideal for economy applications, this versatile scope features a 20X magnification, pre-focused lens and narrow nose piece. Meets ASTM E-10.
Most popular related searches
The Newage 35-450 Pocket Brinell Optical Scope is an economical, 20X optical scope for reading Brinell impressions. Its compact design and fixed focus makes it ideal for those applications where you need a quick, but economical method for measuring the indentation.
A standard flashlight source, powered by a AAA battery, supplies the illumination. The reticule is calibrated in 0.1mm graduations with a range of 6mm and a field diameter of 7mm.
Scope is supplied with a carrying case.
