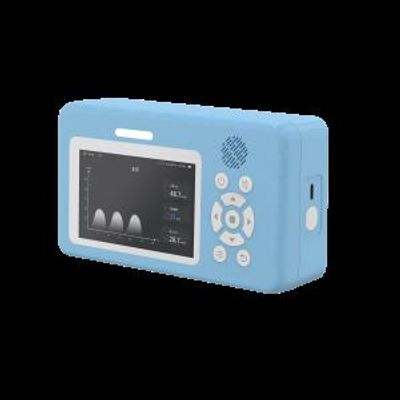

Cubic - Model MEC1010 - Portable EtCO₂ Monitor
Cubic Portable EtCO2 Monitor is an OEM/ODM portable capnograph device designed for real-time measurement of end-tidal CO2 (EtCO2) concentration and respiration rate. Utilizing advanced non-dispersive infrared (NDIR) technology, it delivers highly accurate and reliable capnography performance at respiratory rates of up to 150 breaths per minute, providing clear real-time waveform display. Featuring fast response, precise waveform tracking, and intelligent apnea and ventilation alarms, the monitor ensures accurate and timely clinical assessment. With compact, portable design and extended battery life, Cubic Portable EtCO₂ Monitor enables flexible use across operating rooms, emergency departments, and intensive care units (ICUs). Offering customizable features and flexible configuration options, the device can be tailored to meet specific clinical and regulatory requirements for anesthesia monitoring, CPR guidance, and mechanical ventilation assessment.Most popular related searches
intensive care unit
mechanical ventilation
respiratory rate
anesthesia monitoring
clinical assessment
intensive care
operating room
emergency room
icu care
emergency care
Detection Principle: Non-Dispersive Infrared Technology (NDIR)
Measure Range: 0~150mmHg
Resolution: 0-150mmHg: 0.1mmHg
Accuracy: 0-40mmHg: ±2mmHg; 41-70mmHg：±5% of reading; 71-100mmHg：±8% of reading; 100-150mmHg：±10% of reading
Respiration Rate Range: 0 to 150 Breaths Per Minute (BPM)
Respiration Rate Accuracy: ±1 breath
Data Interface: RS232, TTL(customized)
Working Condition: 5℃-45 ℃, 0-80% RH(Non condensing)
Storage Condition: -10℃ to 55 ℃,0-93% RH(Non condensing)
- NDIR (Non-Dispersive Infrared) technology
- High-accuracy measurement of EtCO₂ and respiration rate
- Fast response time
- Real-time waveform display
- Intelligent apnea and ventilation alarms
- Long battery life ( up to 8 hours of continuous use on a single charge)
- Compact and portable design
- Customizable OEM/ODM solutions
