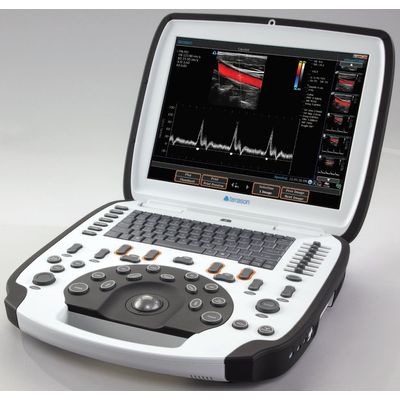

uSmart - Model 3300 NexGen -Portable Ultrasound Scanner

Advanced computer technology and open architecture to streamline workflow and easily store data.

• 1TB SSD
• Integrated CD/DVD+RW
• Easy integration with EMR
• Wireless networking available
• Easily transfer DICOM images to PACS
• Open architecture for file management and 3rd party software
• DICOM Structured Reporting (DICOM SR)

Imaging Modes

• 2D (B-Mode)
• M-Mode
• Anatomical M-Mode
• Color Doppler
• Pulsed Wave Doppler
• Power Doppler
• Directional Power Doppler
• Continuous Wave Doppler
• Tissue Doppler
• Tissue Harmonic Imaging with SuperHarmonicsTM

System Features

• 1 TB SSD
• 802.11 b/g/n Wireless Network, BT 4.0
• Processor: 2.5 GHz, Intel® CoreTM i7
• 8G RAM DDR3 Onboard Memory
• 15" Backlit Polarized Anti-Glare LCD, Ultra-Wide Viewing Angle
• Removable Lithium Ion Battery
• Imaging Channels: 256
• Dynamic Range: 200 dB
• Video Output: 1024 x 768
• Built-In CD/DVD+RW Drive
• Built-In Camera
• Dual Speakers with Subwoofer
• 4 USB Ports
• Gb Ethernet Port
• 2 HDMI Ports
• DC Input
• Headphone Jack
• Microphone Jack
• Kensington Security Slot
• ECG and Auxiliary PortsuConnect® Remote Capabilities
• Windows® 10 Operating System
• Cold Boot-Up Time: < 55 Seconds

Imaging Features

• Smart Resolution Imaging
• Enhanced Needle Visualization (ENV)
• TeraVisionTM II
• OmniBeamTM
• Dynamic Depth Resolution (DDRTM)
• TeraZoomTM
• Trapezoid
• Color/2D
• Triplex/Duplex (Simultaneous/Non-Simultaneous)
• Split Screen
• Full Screen
• Auto Optimization
• 2D Beam Steering
• Application-Specific Presets
• TeraScapeTM
• Post Processing
• Intima-Media Thickness (IMT)

Ergonomics

• Smart Console Design
• Optical Trackball (Full-Size)
• Ergonomic Key Positioning
• Reliable and Responsive High-Quality Controls
• Backlit High-Resolution LCD
• Backlit Keyboard
• Comfort Handle
• Intuitive User Interface
• Tilt Feet

Workflow

• Color Change Controls for Active Mode
• Prospective and Retrospective Capture
• Cine Loop Trim Capability
• Advanced Measurement Tools
• Configurable Report Builder
• Store, Print, Media Export
• JPEG/AVI/BMP/PDF Media Export
• DICOM 3.0
• DICOM Modality Worklist
• DICOM Storage
• DICOM SR

Measurement Packages

• Cardiology
• OB
• Vascular

Physical System Specifications

• System Height: 3.5"/ 89 mm
• System Depth: 15.6"/ 396 mm
• System Width: 15.3"/ 389 mm
• Weight: 14.8 lb / 6.7 kg

Cart Design and Ergonomics

• Sleek Body Style
• Weight: 85 lb / 38.5 kg
• Mobile Design
• 4-Wheel Steering for Excellent Mobility
• 4 Locking Wheels
• 3 Transducer Holders
• Removable and Washable Gel Holder
• On-Cart Storage Basket
• Transducer Connector Holders
• Cable Management
• OEM Printer Bay
• Multi-Probe Connector Kit (Optional)
