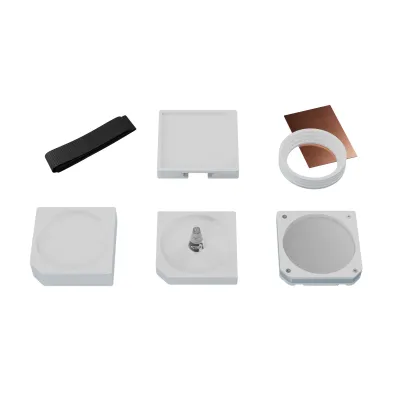

DIAGNOMATIC - Pro-Dent Universal Dental Phantom Set
The Pro-Dent universal set of phantoms is designed for conducting constancy and acceptance tests of both conventional and digital dental X-ray units, including intra-oral, panoramic, and cephalometric devices. Unlike all-in-one solutions where test results might overlap, Pro-Dent provides distinct measurement capabilities, especially in accurately assessing X-ray beam collimation. It stands out as the sole market solution offering this capability with either dental film or digital detectors. The set includes the Pro-Dent Alpha, Pro-Dent Beta (optional), and Pro-Dent Gamma phantoms, allowing for versatility in testing methods. These phantoms conform to technical specifications unique to customer needs, ensuring precise evaluation and quality assurance. It's a critical tool for professionals aiming to maintain high standards in dental radiography, enhancing both equipment performance and patient safety.
The Pro-Dent set is a universal set of phantoms for carrying out constancy and acceptance tests of conventional and digital dental X-ray units (intra-oral, panoramic and cephalometric).
This is not an all-in-one device where results of tests blur each other out. This is the only solution on the market that makes it possible to measure the X-ray beam collimation with a dental film or a digital detector.
With the Pro-Dent set you can do the following tests:
- dose reproducibility
- development process stability
- perpendicular X-ray beam (range 0° ÷ 1.5°)
- limitation and alignment of the X-Ray beam (including beam radius measurement)
- spatial / line pair resolution (perpendicular, parallel and rotated 45° to anode-cathode line)
- low contrast resolution
Pro-Dent Alpha phantom
- 3 step wedge (first step made of copper foil 0.3 mm thick, the next ones are made of polytetrafluoroethylene 8 mm and 16 mm thick)
- cover made of PMMA
Pro-Dent Beta phantom (optional)
- cone for perpendicular X-Ray beam control in the range of 0° ÷ 1.5°
- pattern for beam radius estimation
- cover made of PMMA
Pro-Dent Gamma phantom
- pattern for line pair resolution evaluation (from 4 to 8 LP/mm)
- optional second pattern for line pair resolution evaluation (from 1.6 to 3 LP/mm) – OPG units
- four holes in 0.5 mm Al foil for low contrast resolution tests
- additional 6 mm aluminium filter
- cover made of PMMA
- 0.8 mm copper filter – patient’s head equivalent
- positioning stand with a space for an analogue film or a digital detector
- band for firm, perpendicular attachment of the phantom to the X-Ray unit’s beam applicator
- rings for centering phantoms on the X-Ray unit’s beam applicator
- elegant and convenient box for storing phantoms
- complies with:
- OEC 61223-2-7 and IEC 61223-3-4
- DIN 6868-5 and DIN V 6868-151
- ÖNORM S 5240-5 and ÖNORM S 5240-11 - CE certified
- the manual provides detailed guidelines for carrying out each test, results assessment and registration
