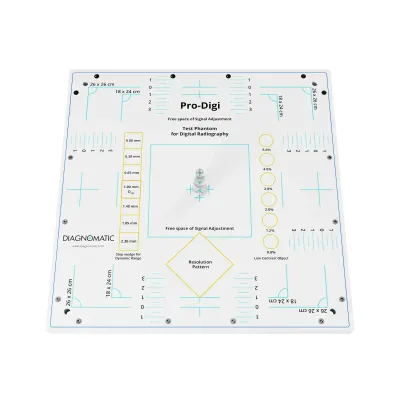

DIAGNOMATIC - Model 02-102 -Pro-Digi Phantom for Digital Radiography Testing
The Pro-Digi Phantom is designed specifically for the acceptance and constancy tests of digital radiography equipment, serving as a vital component in evaluating image quality and system performance. It enables comprehensive measurements, allowing users to verify various technical parameters critical for digital radiography. The phantom can be customized to meet specific customer specifications, ensuring its versatility across different radiographic setups. As part of the quality assurance protocol, the Pro-Digi Phantom ensures that digital radiography systems maintain optimal performance, which is crucial for accurate diagnoses and patient care. Its application spans a range of tests necessary for the compliance and functionality assessments in medical imaging facilities.
The Pro-Digi phantom is dedicated for acceptance and constancy tests of digital radiography equipment.
It can be used to measure:
- collimation / beam alignment
- position and size of the effective radiation field
- dynamic range
- spatial resolution
- contrast resolution
- homogeneity
- dimensions: 310 x 310 x 14 mm
- 1 mm thick copper plate embedded in PMMA
- 7-step copper wedge
- 6 low contrast elements
- free area for signal calibration
- markings to determine the size and position of the effective radiation field
- pattern for line pair resolution evaluation (from 0.6 to 5.0 LP/mm)
- cone for perpendicular X-Ray beam control in the range of 0° ÷ 1.5°
- complies with:
– IEC 61223-3-1
– DIN 6868/58 and DIN 6868/13 - CE certified
- the manual provides detailed guidelines for carrying out each test, results assessment and registration
