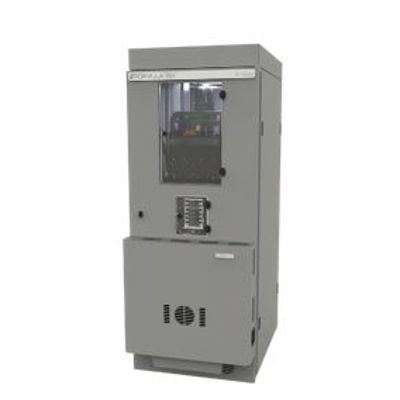

SONICC® - Protein Crystal Detector

SHARE
The ultimate imaging technology in visualizing protein crystals, Second Order Nonlinear Imaging of Chiral Crystals (SONICC) definitively finds crystals buried in precipitate or submicron crystals naked to the eye. Two powerful technologies, Second Harmonic Generation (SHG) and Ultraviolet Two-Photon Excited Fluorescence (UV-TPEF) are combined together in a completely automated imager to quickly image your high throughput crystallization plates and positively identify protein crystals. Crystals appear white against a stark black background, helping you to identify crystals even in murky environments. SONICC can detect extremely thin crystals, microcrystals <1 μm, and crystals obscured in birefringent LCP. Major pharmaceutical and academic research labs worldwide find SONICC to be extremely successful, cost-effective, and efficient.
Most popular related searches
pharmaceuticals
pharmaceutical research

Key Features:

  • Remove the guesswork
  • Find Hidden Crystals That You May Have Missed Before
  • Distinguish Salt Crystals from Protein Crystals
  • Quickly Identify Obscured Crystals
  • Ideal for Imaging in Lipidic Cubic Phase (LCP)
  • Models to Fit Your Workflow

Computer Requirements

The standard SONICC controlling computer offered with the instrument supports imaging with continuous multiple focus level imaging (z-slicing) and processing of all images.

SONICC uses the ROCK IMAGER control software which operates with 64-bit Windows 10 or 64/32 bit Windows 7.

Electrical Specifications

SONICC - Benchtop

Robotics: 100-240 VAC, 50-60 Hz, 600 W max, 1 PH
UPS (uninterrupted power supply) for robot and laser: 1500 W
Computer: 100-240 VAC, 50-60 Hz, 525 W max, 1 PH

SONICC - Integrated with ROCK IMAGER 1000 - Dual Imager

Temperature Regulation: 100-240 V, 50-60 Hz, 750W max, 1 PH
Robotics: 100-240 V, 50-60 Hz, 270 W max, 1 PH
Computer: 525 W max, 1 PH
UPS (uninterrupted power supply) requirement: 4700 W

Physical Dimensions

SONICC Benchtop

Width: 642 mm (25.3")
Depth: 700 mm (27.5")
Height: 980 mm (38.6")
Weight: 85 kg (188 lb)

SONICC Integrated Dual Imager

Width: 834 mm (33")
Depth: 1230 mm (49")
Height: 2197 mm (87")
Weight: 462 kg (1019 lbs)
