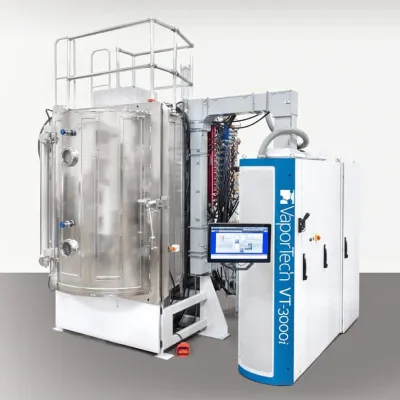

VaporTech - Model VT-3000i -PVD Coating Machine

SHARE
The VT-3000i system is a high-capacity PVD and PECVD coating machine designed for large-scale operations. It features a spacious chamber accommodating parts up to 122 cm, ideal for coating a wide range of materials including steel, brass, zinc, and prepared plastics. VaporTech's centrally mounted cathodic arc deposition source ensures consistent coating uniformity and properties, while the lower temperature process allows flexibility across various materials. The system supports multiple technologies including cathodic arc PVD and PECVD for diamond-like carbon coatings. With a footprint of 4.3m x 3.6m and a coating area capacity of 12.44m2, the VT-3000i system targets industries such as automotive, medical devices, tools, and consumer products, enhancing both aesthetics and functionality. Remote diagnostics offer operational efficiency and immediate support, making it an excellent choice for businesses aiming to optimize their production capabilities.
Most popular related searches
medical device
medical tool
medical consumable product
medical device product
medical device production
medical consumable

VT-3000i™ System: Highest-Capacity Cathodic Arc Coating Machine
The VT-3000i™ system is our largest PVD and PECVD/DLC coating system delivering our largest chamber and high throughput for large operations.

The VT-3000i PVD coating machine is a large PVD and DLC/PECVD coating system for high throughput or larger parts up to 122 cm (48 in).

Our unique centrally mounted cathodic arc deposition source ensures you get consistency and maximum control over coating uniformity and properties. Lower temperatures enable you to coat various materials such as steel, brass, zinc, or prepared plastic, giving products made of multiple materials a common finish and appearance. Additionally, VaporTech will optimize coatings to meet your specifications for color or function.



The VT-3000i PVD coating machine includes the following key capabilities:



Uniform

Excellent color uniformity & deposition rates throughout the chamber.



Flexible

Multiple coating technologies for various applications in a single system.



Consistent

Even coating deposition rates throughout the chamber.



Low temperature

Lower-temperature process suitable for both metal and plastic parts.



Part sizes

Coat large parts up to 122 cm (48 in) long.



Remote access

Factory remote diagnostics available.

System capacity

  • System footprint: 4.3m x 3.6m
  • Coating area per batch: 12.44 m2
  • Number of racks: 16
  • Rack size: 45cm x 20.3cm Ø



Size

  • Height: 150 in. (3.8m)
  • Width: 141 in. (3.6m)
  • Depth: 170 in. (4.3m)*



Coating technologies

  • Low-temperature cathodic arc vapor deposition (LTAVD®)



Coating processes

  • Physical vapor deposition (PVD)
  • Plasma-enhanced chemical vapor deposition (PECVD) to create diamond-like carbon (DLC) coatings



Available coatings

  • Pure, alloyed, or reacted zirconium, titanium, chromium, and carbon
